Access Control Barrier
Flap Barrier Turnstile
SI-131A/132A
Flap Barrier Turnstile field of application Office and administrative buildings, Ministries and public buildings, Banks and financial institutions, Airports, Industrial installations, Residential areas, Gymnasium, Schools, colleges and universities.
Feature & Specification

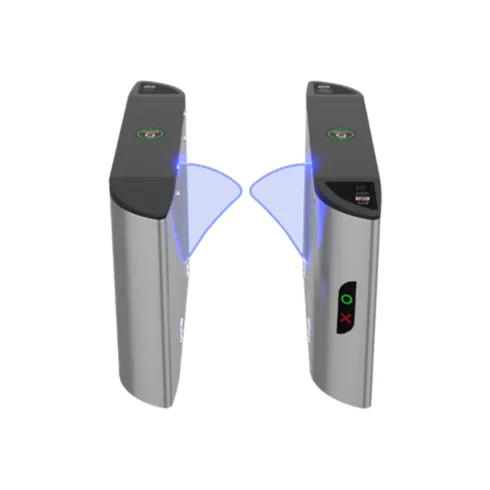

Access Control Barrier Flap Barrier Turnstile 1 ~blog/2022/6/9/1312

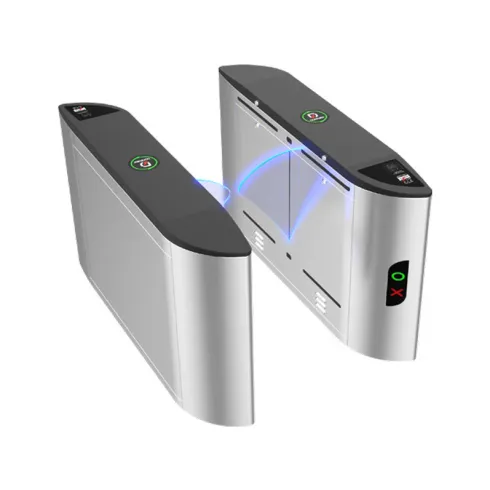

Access Control Barrier Flap Barrier Turnstile 2 ~blog/2022/6/9/1311
  • Features
  • Specification

    • Specification

  • Driving motor : DC24V brushless motor.
  • Arm material : Acrylic (tempered glass for optional).
  • Colour : Black.
  • Operating Environment : Indoor,20 C° - 70 C°.
  • IP level : IP22.
  • MTBF : 8 million times.
  • Power supply voltage : 40W (left/right), 60W(middle).
  • Relative humidity : ≤ 90 %, no condensation.
  • Method of Positioning : Brushless motor + clutch + encoder.
  • Direction of passing : Uni-directional/Bi-directional.
  • Passing width : 550 mm.
  • IR Sensor : 6 Pairs.
  • Passing speed : ≥ 35 people/min.
  • Opening speed : Adjustable, fastest 0.5S.
  • Input interface : Relay ( Dry Contact ).
  • Size : 1600*280*980mm.
  • Materials : SUS304 brushed stainless steel.
    • + Cold rolled sheet spray process.
    -

Download
Flap Barrier Turnstile 1
