High-End Speed Swing Gate Tunrstile | Access Control Barrier

Access Control Barrier

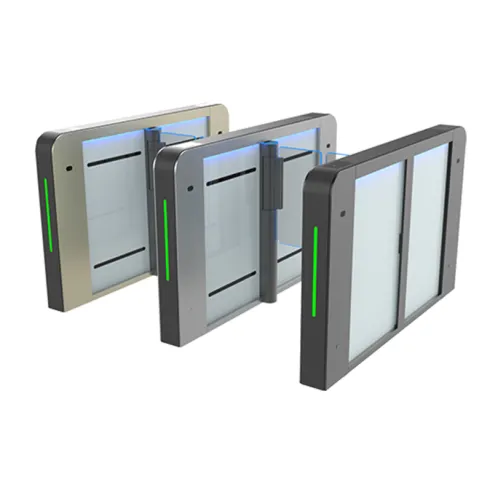

High-End Speed Swing Gate Tunrstile

SI - 141

Aesthetical simple, elegant and beautiful with brushed stainless steel finish, best suited for passage control of airports, hotels, art galleries and commercial building.

Feature & Specification

Access Control Barrier High-End Speed Swing Gate Tunrstile 1 ~blog/2022/12/20/123456sas

Features
Specification

Features

Anti-trailing alarm and anti-reverse.

Buzz with light alarm if illegal entry.

With voice broadcast(volume can be adjusted).

With memory opening function (up to 500 times), delay closing, and overtime closing functions.

With the function of counting the number of people passing.

With a standard fire alarm input interface, the gate will automatically open in case of fire.

With the anti-break-in function, the wings will automatically close unless received an open signal.

With an anti-pinch function, the wings will stop running and rebound to a certain angle when it is blocked during operation.

With the IR sensor anti-pinch function, when the gate is closing, the wings will automatically open if detect people in the aisle.

With power-on self-test function.

With power-off free passing function, in line with fire protection requirements.

With automatic reset function: after reading a valid card, if the pedestrian does not pass within the specified time (default 5 seconds, configurable), the system will automatically clear the pedestrian's rights to pass for this time.

With multiple protection when passing, ir sensor anti-pinch, traffic logic anti-pinch, current detection anti-pinch.

When the trailing mode is turned on, there are two traffic modes, alarm while wings opening, and alarm while wings closing.

When the anti-reverse mode is turned on, there are three modes, alarm while wings opening, alarm while wings closing, and clear the right to pass, alarm while wings closing, and retain the right to pass.

the parameters can be set uniformly through the buttons and the LCD screen.

Specification

Driving motor : DC24V servo motor.

Arm material : Acrylic (tempered glass for optional).

Colour : (Champagne gold+black & titanium grey+black & titaniu black+black for optional).

Operating Environment : Indoor, -25 C° - 70 C°.

IP level : IP42.

MTBF : 20 million times.

Power supply voltage : 100W(left/right), 200W(middle).

Relative humidity : ≤ 90%, no condensation.

Method of Positioning : Servo motor + clutch + encoder.

Direction of passing : Uni-directional/Bi-directional.
