Access Control Reader Mifare Reader with LED ENID
Home /
Access Control Reader

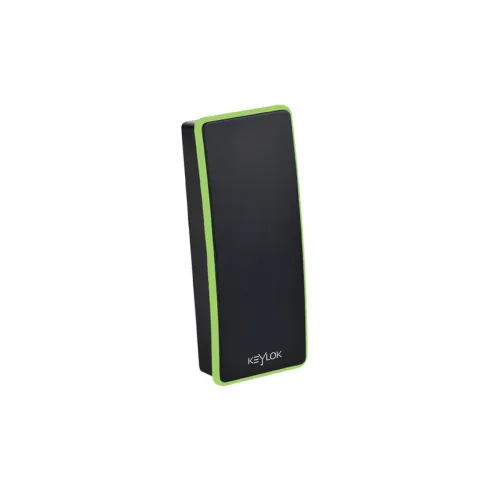

Mifare Reader with LED
SI-R-02A
13.56 Mhz-A transceiver unit is designed for reading code from mifare card read-only tags and is a major component in RFID (Radio Frequency Identification) reader system.
Feature & Specification
Access Control Reader Mifare Reader with LED 1 ~blog/2022/6/20/r02a
  • Features
  • Specification

    • Specification

    • Dimension : 127(L) x 53(W) x 24(H) mm
    • Voltage : DC 5-15V
    • Current : 50 mA
    • Frequency : 13.56 mHz
    • Card Reading Time : 100 ms
    • Reading Distance : 3-5 cm
    • Working Temp. : -15º C to 60º C
    • Storage Temp. : -20º C to 80º C
    • IP Rate : IP65 water proof
    • Color : Blue and Green LED
    • Device Protection : Power supply converse connection protection
    • Card : Mifare 1K, Type A

Download
Mifare Reader with LED 1
