Mullion Contactless Smart Card Reader

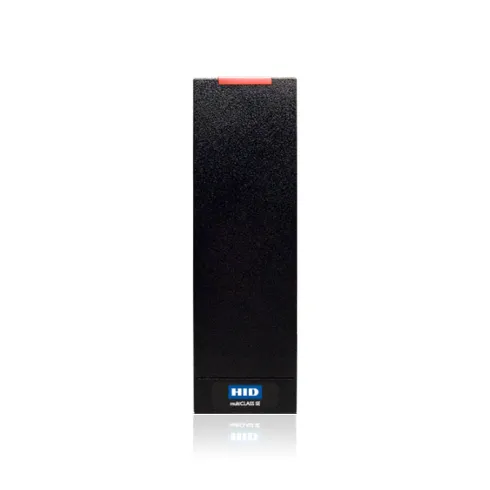

HID® multiCLASS SE® RP15
The multiCLASS SE® RP15 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for door applications requiring a mullion style mounting, multiCLASS SE® RP15 supports a broad array of high frequency 13.56 MHz and low frequency 125kHz credential technologies and a variety of form factors, including cards, fobs and mobile devices. Configurable to support HID Mobile Access®.
Feature & Specification
Access Control Reader Mullion Contactless Smart Card Reader 1 ~blog/2022/6/17/rp15
  • Features
  • Specification

    • Specification

    • Typical Read Range : 13.56 MHz Single Technology ID-1 Cards: iCLASS Seos: 0.8" (2 cm), iCLASS: 3.1" (8 cm), MIFARE Classic: 2.8" (7 cm), MIFARE DESFire EV1/EV2: 1.2" (3 cm); 13.56 MHz Single Technology Tags/Fobs: iCLASS: 1.6" (4 cm), MIFARE Classic: 1.2" (3 cm); 125 kHz Single Technology ID-1 Cards: HID Prox: 2.8" (7 cm), Indala Prox: 1.6" (4 cm), EM4102 Prox: 4.3" (11 cm); 125 KHz Single Technology Tags/Fobs: HID Prox: 1.6" (4 cm), Indala Prox: 0.8" (2 cm), EM4102 Prox: 2.8" (7 cm)
    • Mounting : Ideally suited for mullion-mounted door installations or any flat surface
    • Mounting Spacer : To be used when mounting on metallic surfaces, refer to How To Order Guide for part numbers
    • Color : Black
    • Dimensions : 4.8 cm x 15.3 cm x 2.3 cm
    • Product Weight (Pigtail) : 5.2oz (149g)
    • Product Weight (Terminal Strip) : 4.3oz (124g)
    • Operating Voltage Range : 5-16 VDC, Linear supply recommended
    • Current Draw - Standard Power Mode (mA) : 75
    • Current Draw - Intelligent Power Management (IPM) Mode (mA) : 40
    • Peak Current Draw - Standard Power or IPM Mode (mA) : 200
    • NSC Power Consumption - Standard Power Mode (mA) : 1.2
    • NSC Power Consumption - w/ IPM (mA) : 0.6
    • Operating Temperature : -31˚ to 150˚ F (-35˚ to 65˚ C)
    • Storage Temperature : -67˚ to 185˚ F (-55˚ to 85˚ C)
    • Operating Humidity : 5% to 95% relative humidity non-condensing
    • Environmental Rating : Indoor/Outdoor IP55; IP65 if installed with optional gasket (IP65GSKT)
    • Transmit Frequency : 13.56 MHz & 125 kHz
    • 13.56 MHz Card Compatibility : Secure Identity Object™ (SIO®) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default) - standard iCLASS Access Control Application (order with Standard interpreter) -ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN - MIFARE Classic and MIFARE DESFire EV1 custom data models - FeliCa™ CSN, CEPAS CSN or CAN - MIFARE DESFire EV2 via EV1 backward compatibility
    • 125 kHz Card Compatibility : HID Prox, AWID, Indala, EM4102
    • Communications : Optional OSDP with SCP over RS485 Wiegand/Clock-and-Data Interface 500ft (150m) (22AWG) - Use Shielded cable for best results
