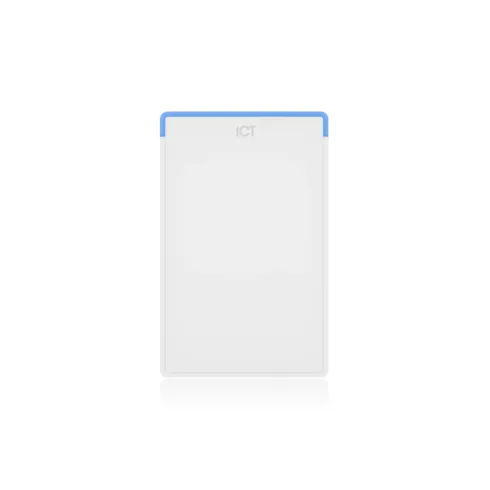

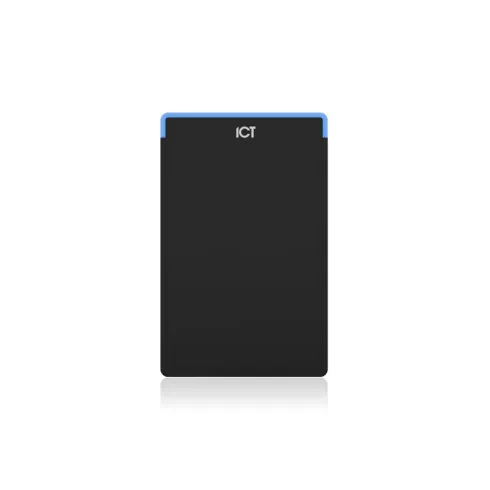

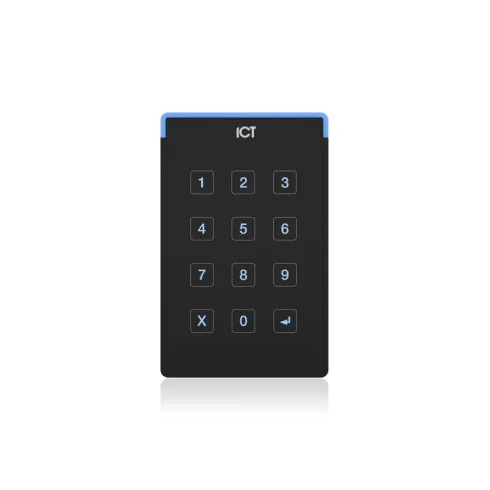

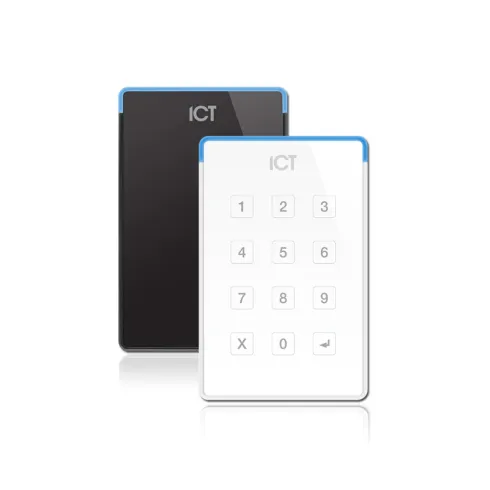

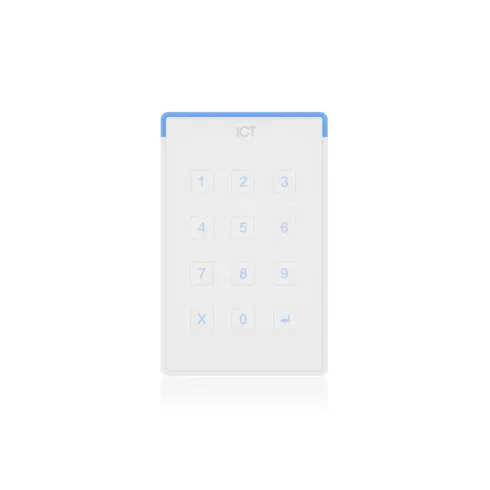

tSec Extra RFID Card Reader

PRX-TSEC-EXTRA

The tSec Extra Reader provides a complete multitechnology smart card RFID solution. Compatible with all Wiegand capable control systems and incorporating RS-485 communication, tSec Readers allow rapid deployment of secure technology in any environment.

Feature & Specification

Features
Specification

Features

> Multi card technology provides support for 13.56MHz (DESFire and MIFARE) and 125kHz cards from a single reader
> Encrypted RS-485, OSDP with secure channel, or standard Wiegand communication
> Optional Bluetooth® / NFC credential reading
> Configurable LED strip
> Read range up to 60mm (2.36") with proximity ISO cards
> Fully encapsulated design with environment IP Rating of IP65 for outdoor and indoor operation
> Optional vandal resistant cover

Specification

• Operating Voltage : 12VDC (9.5 to 14VDC)
• Operating Current : 298mA (Peak, Reading)
• Card Read Range : MIFARE 60mm (2.36"), DESFire EV1 ISO 15mm (0.6"), 125kHz Clamshell 40mm (1.57”)
• Tag Read Range : MIFARE 30mm (1.2"), DESFire EV1 6mm (0.23"), 125kHz 25mm (0.98”)
• Wiegand Interface : Multiple format 26 or 34 Bit data 0 and data 1, card defined
• Frequency : 13.56 MHz ISO/IEC 14443 Type A, 125KHz pulse width modulated †
• Multi Conductor Cable : Wiegand: 22Awg alpha 5196, 5198, 18Awg alpha 5386, 5388. Max Distance 150m (492ft), Module comms/RS485: Belden 9842 or equivalent. Max distance 900m (3000ft)
• OSDP Communication : OSDP standard 2.2 with Secure Channel Protocol
• Bluetooth® Read Range : Proximity mode: up to 0.5m (1.6ft) Configurable. Action unlock (shake): up to 5m (16.4ft) Configurable
• Bluetooth® Electronic Credential Transmission Technology : NRF8001 Bluetooth® version 4.0 compliant, Proprietary data exchange protocol. AES128 Encrypted, Reader App Version: 1.04.175 and above, Credentials can be distinguished by unique site code and card number
• Bluetooth® Wireless Device : Protege Mobile 1.0.x
• NFC Read Range : Up to 60mm
• NFC (Near-field communication) electronic credential transmission technology : Android 4.4 or above, with phones which support ISO7816-4, Proprietary Secured DESFire credential, Credential is AES-256 (NIST certified AES algorithm), Reader App Version: 1.04.175 and above, Credentials can be distinguished by unique site code and card number
• NFC Wireless Device : Protege Mobile 1.0.x
• Environment IP Rating : IP65
• Operating Temperature : UL/ULC -35° to 66°C (-31° to 151°F) : EU EN -40° to 70°C (-40° to 158°F)
• Storage Temperature : -10˚ to 85˚C (14˚ to 185˚F)
• Dimensions (H x W x D) : 17 x 75 x 18mm (4.61 x 2.95 x 0.71")
• Net Weight : 160g (5.6oz)
• Gross Weight : 190g (6.7oz)
