UHF Reader for Hands-free Access
uPASS ACCESS
The uPASS Access is an ultra-small UHF reader for hands-free door access. Based passive UHF technology (± 900 MHz), people are identified up to 2 meters (6,5 feet). The uPASS Access complies with the ISO18000-6C and EPC global Gen 2 directive.
Feature & Specification

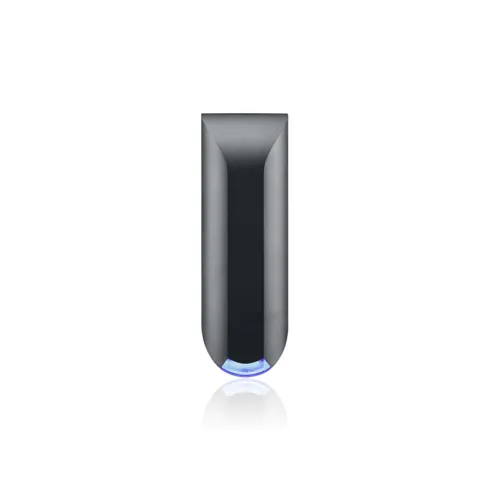

Access Control Reader UHF Reader for Hands-free Access 1 ~blog/2022/6/20/upass1

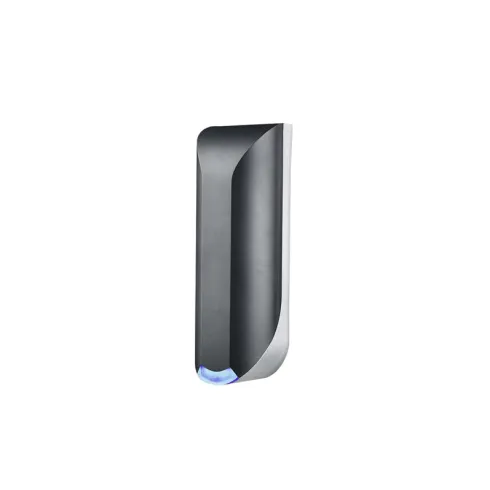

Access Control Reader UHF Reader for Hands-free Access 2 ~blog/2022/6/20/upass2

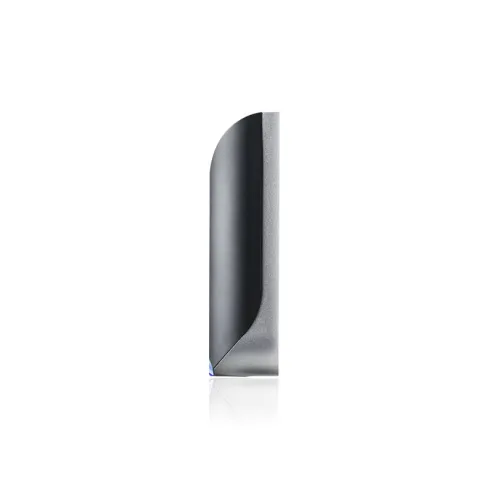

Access Control Reader UHF Reader for Hands-free Access 3 ~blog/2022/6/20/upass3
  • Features
  • Specification

    • Specification

    • Part number : 9958240 uPASS Access (region 1), 9206663 uPASS Access (region 2), 9211926 uPASS Access (region 3)
    • Dimensions : 150 x 50 x 40 mm (5.9 x 2 x 1.6 in)
    • Color : RAL7016 cover and RAL9006 chassis
    • Weight : 0,5 kg (1.1 lbs)
    • Protection class : IP65 (approx.NEMA4x)
    • Material : Zamak chassis with polycarbonate cover
    • Operating temperature : -30… +60°C (-22… +140°F)
    • Storage temperature : -30… +60°C (-22… +140°F)
    • Relative humidity : 10% ... 93% relative humidity, non-condensing
    • Power supply : 12...24 VDC ± 10% linear supply recommended
    • Power consumption : 1A @12VDC, 1@24VDC
    • Read range : Up to 2 meters (6,5 feet) with passive Nedap UHF cards or Nedap UHF Combi cards
    • Operating frequency : 865-868 MHz uPASS Access Region 1, 902-928 MHz uPASS Access Region 2, 915-928 MHz uPASS Access Region 3
    • Antenna polarization : Intermittend horizontal and vertical
    • Air interface : According to ISO 18000-6 C; EPC Gen 2
    • Communication interfaces : RS485 and USB2 service interface
    • Communication protocols : OSDP, CR/LF
    • Relay output : No relay output
    • Input : 2 TTL digital inputs for LED control (RED/GREEN), 1 TTL digital input for beeper control
    • Output : Wiegand, clock & data
    • Cable specifications : Pigtail cable - 5 meters (16.4 feet) included, Wiegand cable -150 meters (500 feet) 22AWG, RS485 cable - 1200 meters (3950 feet)
    • Tamper switch : Magnetic switch, normally closed
