Access Control System Compact Secure Single Door I/O Module ENID
Home /
Access Control System
Compact Secure Single Door I/O Module
Secure I/O 2
Secure Module provides secure door control via encrypted communication when combined with other Suprema devices. Its ultra-compact form factor allows it to be installed and used in different environments.
Feature & Specification

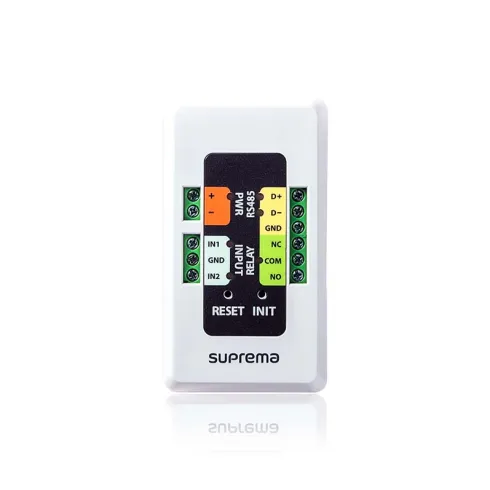

Access Control System Compact Secure Single Door I/O Module 1 ~blog/2022/7/1/sio1

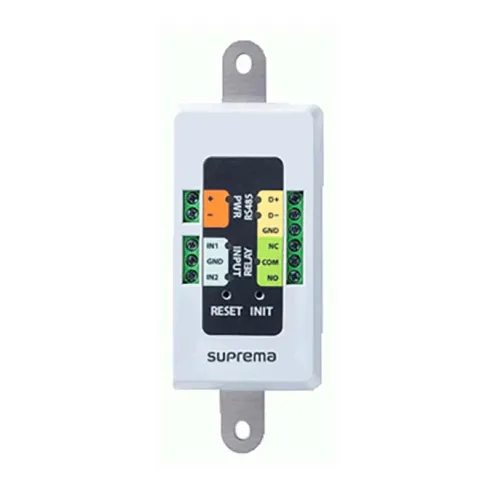

Access Control System Compact Secure Single Door I/O Module 2 ~blog/2022/7/1/sio2
  • Features
  • Specification

    • Specification

    • CPU : Cortex M3 72MHz
    • Memory : Flash 128KB, SRAM 20KB
    • LED : Multi-color
    • RS-485 : 1 ch
    • TTL Input : 2 ch
    • Relay : 1 Relay
    • Operating Temperature : -20°C - 50°C
    • Storage Temperature : -40°C - 70°C
    • Operating Humudity : 0% - 80%, non-condensing
    • Storage Humudity : 0% - 90%, non-condensing
    • Dimensions (WxHxD) : 36 x 65 x 18 mm
    • Weight : 37 g
    • Power : DC 12 V
