VertX™ V100
The HID VertX® products provide a complete and fully featured hardware/firmware infrastructure for access control software host systems.

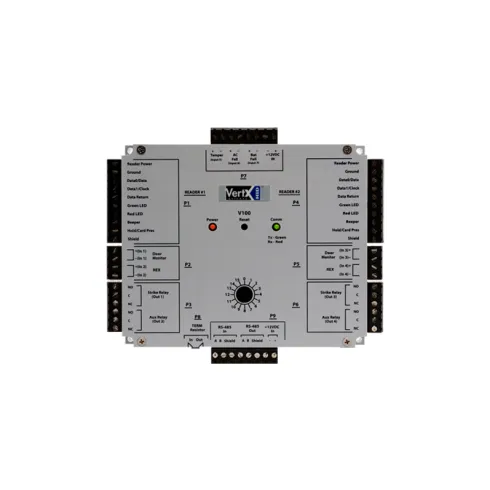

The V100 Door / Reader Interface connects two access control card readers via Wiegand or Clock-and-Data interface controlling either one or two doors. The V100 features on-board flash memory, allowing program updates to be downloaded via the network. The V100 connects to the V1000 through a high speed RS-485 network. The V1000, in turn, communicates with the system host via industry standard TCP/IP protocol over 10/100 Mbps Ethernet or the Internet. This architecture minimizes the impact on corporate LANs by using only one TCP/IP address for every 32 interfaces and by handling low-level transactions on the RS-485 network.
Feature & Specification
Access Control System Door / Reader Interface 1 ~blog/2022/7/1/v100
  • Features
  • Specification

    • Specification

    • Dimensions : 147.32 mm x 122.55 mm x 32.38 mm
    • Weight : 12.4 oz (.35 kg)
    • Enclosure Material : UL94 Polycarbonate
    • Power Supply Requirements : 60 mA @ 9–18 VDC (with no readers connected). Recommended: Supervised linear power supply with battery backup, input surge protection, and AC fail and battery low contact outputs. When VertX™ is supplying power to readers, the requirements are 600 mA @ 9–18 VDC. The V100 can supply 500 mA to two readers. Separate supervised DC supplies with battery back-up recommended for door locking or relay-activated devices, or for HID MaxiProx® readers.
    • Operating Environment : Indoors, or customer-supplied NEMA-4 rated enclosure
    • Operating Temperature : 32° to 122° F (0° to 50° C)
    • Operating Humidity : 5% to 95% relative, non-condensing
    • Storage Temperature : -67° to 185° F (-55° to 85° C)
    • Communications Ports : RS-485 - two wire. Two SIA standard Wiegand/Clock-and-Data ports
    • Cable Distance : RS-485 — 4000 feet (1220 m) to host using Belden 3105A, 22 AWG twisted pair, shielded 100Ω cable; Wiegand — 500 feet (150 m) to reader using ALPHA 1299C 22 AWG, 9-conductor, stranded, overall shield (fewer conductors needed if all control lines are not used); Input Circuits — 500 feet (150 m), 2-conductor, shielded, using ALPHA 1292C (22 AWG) or Alpha 2421C (18 AWG); Output Circuits — 500 feet (150 m), 2-conductor, using ALPHA 1172C (22 AWG) or Alpha 1897C (18 AWG); minimum wire gauge depends on cable length and current requirements.
