Input Monitor Interface

VertX™ V200

The HID VertX® products provide a complete and fully featured hardware/firmware infrastructure for access control software host systems.

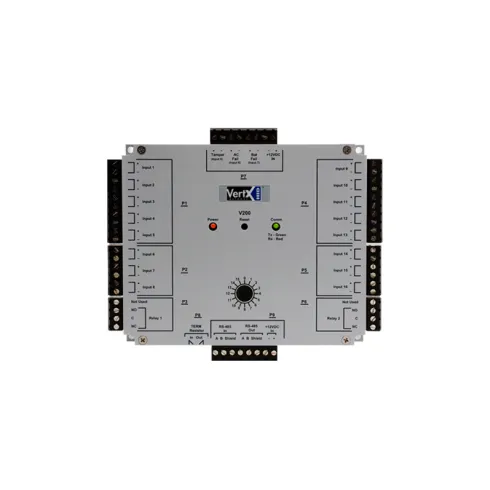

The V200 input monitor interface connects up to 16 supervised input circuits. Each input point monitors and reports normal, off-normal, and alarm states. The V200 features on-board flash memory, allowing program updates to be downloaded through the network. The V200 connects to the V1000 via a high speed RS-485 network. The V1000, in turn, communicates with the system host via industry standard TCP/IP protocol, over 10/100 Mbps Ethernet, or the Internet. This architecture minimizes the impact on corporate LANs, by using only one TCP/IP address for every 32 interfaces, and by handling low-level transactions on the RS-485 network.

Feature & Specification

Access Control System Input Monitor Interface 1 ~blog/2022/7/1/v200

Features
Specification

Features

> Reports supervised or un-supervised alarm circuits.
> Off-normal condition programmable for each input point (NO or NC alarm devices may be used).
> Connects to the V1000 via RS-485.
> Receives and processes real time commands from the V1000.
> Reports all activity to the V1000.
> Allows complex input/output linking when used with the V1000 and V300 Output Control Interface.
> Attractive polycarbonate enclosure protects components from damage.
> All connections and indicators are fully identified by silk-screened nomenclatureon the cover.
> UL 294 and UL 1076 recognized components.

Specification

• Dimensions : 147.32 mm x 122.55 mm x 32.38 mm
• Weight : 12.4 oz (.35 kg)
• Enclosure Material : UL94 Polycarbonate
• Power Supply Requirements : 50 mA @ 9–18 VDC. Recommended: Supervised linear power supply with battery back-up, input surge protection, and AC fail and battery low contact outputs. Separate supervised DC supply with battery back-up recommended for relay-activated devices.
• Operating Environment : Indoors, or customer-supplied NEMA-4 rated enclosure
• Operating Temperature : 32° to 122° F (0° to 50° C)
• Operating Humidity : 5% to 95% relative, non-condensing
• Storage Temperature : -67° to 185° F (-55° to 85° C)
• Communications Ports : RS-485 - two wire
• Cable Distance : RS-485 - 4000 feet (1220 m) to host, using Belden 3105A, 22 AWG twisted pair, shielded 100Ω cable. Input Circuits - 500 feet (150 m), two-conductor, shielded, using ALPHA 1292C (22 AWG) or Alpha 2421C (18 AWG); Output Circuits - 500 feet (150 m), 2-conductor, using ALPHA 1172C (22 AWG) or Alpha 1897C (18 AWG). Minimum wire gauge depends on cable length and current requirements.
