Intelligent Biometric Controller

CoreStation

Suprema CoreStation is an intelligent door controller which provides the advantages of a biometric-enabled security over a centralized access control system. Designed to accommodate enterprise-level systems, the CoreStation can store up to 500,000 users with an incredible fingerprint matching speed of up to 400,000 match/sec. With its high-performance, biometric readiness, Ethernet communication, CoreStation is also capable of offering the full features of the BioStar 2 platform.

Feature & Specification

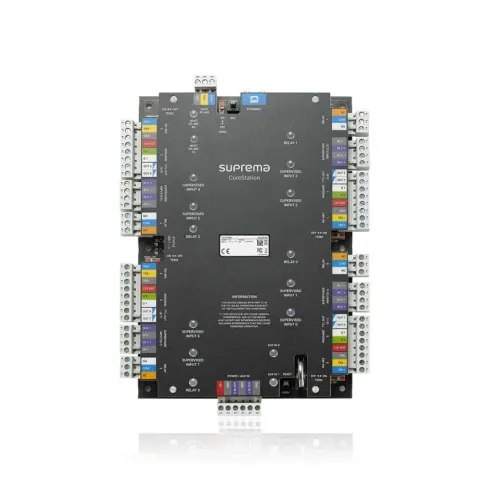

Access Control System Intelligent Biometric Controller 1 ~blog/2022/7/1/core1

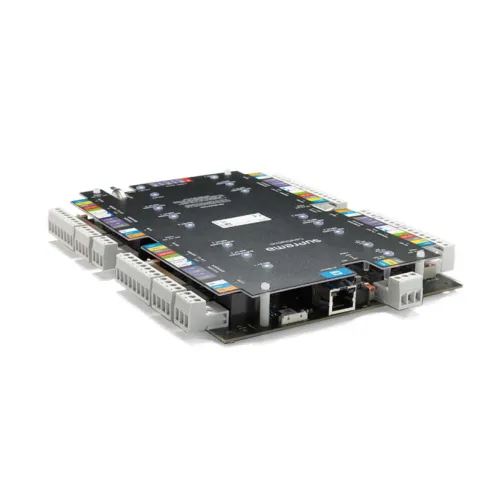

Access Control System Intelligent Biometric Controller 2 ~blog/2022/7/1/core2

Features
Specification

Features

> Centralized Biometric Access Control • Centralized storage of biometric and access group data • Complete controller functionalities with ﬁngerprint matching • Multi-port interface for ﬁngerprint/RF readers - Supports locks, sensors, RTE, and alarm devices
> Enterprise-level Capacity • Max 500,000 users (1 million ﬁngerprint templates) - 500,000 RF cards/5,000,000 event logs • High-speed ﬁngerprint matching - Max 400,000 match/sec (genuine matching) • UL 294 Compliant: Highest safety and reliability certiﬁed by world-renowned label
> Improved Security • No Ethernet connection to the door reader • No data storage at the door reader • Secured communication between server and CoreStation (TLS 1.2)
> System Flexibility and Scalability • Controls up to 132 access points with extension modules (DM-20) • Elevator Control (OM-120) • Supports OSDP (Open Supervised Device Protocol)
> Fully Compatible with BioStar 2 • Easy operation and conﬁguration • Comprehensive access control and time & attendance functionalities

Specification

• CPU : 1.4 GHz Octa Core
• Memory : 8 GB Flash + 1 GB RAM
• Max. User (1:1)* : 500,000
• Max. User (1:N)* : 100,000
• Max. Face User (1:1)* : 30,000
• Max. Face User (1:N)* : 4,000
• Max. Logs : 5,000,000 (text)
• Serial Comm. Protocol : OSDP V2
• Ethernet : 10/100Mbps, auto MDI/MDI-X
• RS-485 : 5 ch
• Wiegand : 4 ch input
• Relay : 4 relays
• TTL Input : 8 ch (Supervised input selectable)
• TTL Output : 8 ch
• AUX Input : 2 ch (AC Power Fail, Tamper)
• Operating Temperature : 0°C–50°C
• Dimensions (WxHxD) : 150 x 214 x 21 mm
• Power : DC 12 V
• Power Output (Reader) : 4 ch (DC 12 V)
