Multiple Output Extension Module

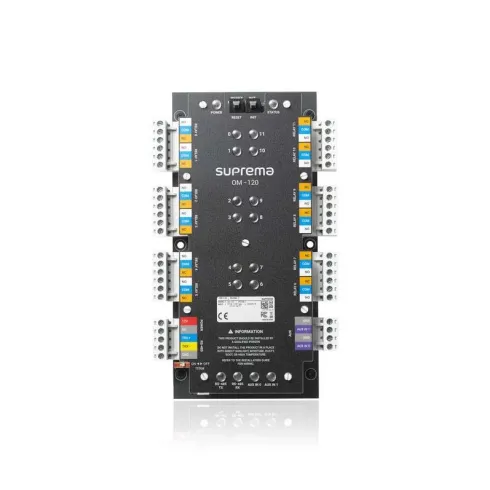

OM-120
Output Module is a multiple output extension module which can control up to 12 output relays. It can also be used as an elevator controller with BioStar 2 system. A total of 31 units can be connected to a master device via RS485 daisy chain. The output module also has an anti-passback feature and a fire alarm feature.
Feature & Specification
Access Control System Multiple Output Extension Module 1 ~blog/2022/7/1/om_120
  • Features
  • Specification

    • Specification

    • CPU : Cortex M3 72MHz
    • Memory : Flash 128KB, SRAM 20KB
    • LED : Multi-color
    • RS-485 : 1 ch
    • Relay : 12 Relays
    • AUX Input : 2 ch Dry Contact Input
    • Operating Temperature : -20°C - 60°C
    • Storage Temperature : -40°C - 70°C
    • Operating Humudity : 0% - 95%, non-condensing
    • Storage Humudity : 0% - 95%, non-condensing
    • Dimensions (WxHxD) : 90 x 190 x 21 mm
    • Weight : 300 g
    • Power : DC 12 V
