Protege DIN Rail 16 Input Expander
PRT-ZX16-DIN
Designed for use with industry standard DIN rail mounting, the Protege DIN Rail 16 Input Expander provides the interface of up to 16 inputs for monitoring and automation in the Protege system.

With 16 inputs that can be used for extended monitoring functionality, the DIN Rail 16 Input Expander provides extensive hardware advancements that allow flexible input programming and configuration.
Feature & Specification

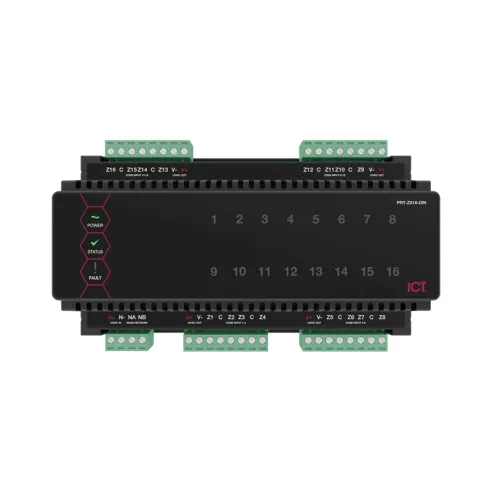

Access Control System Protege DIN Rail 16 Input Expander 1 ~blog/2022/7/1/prt_zx16_din_front

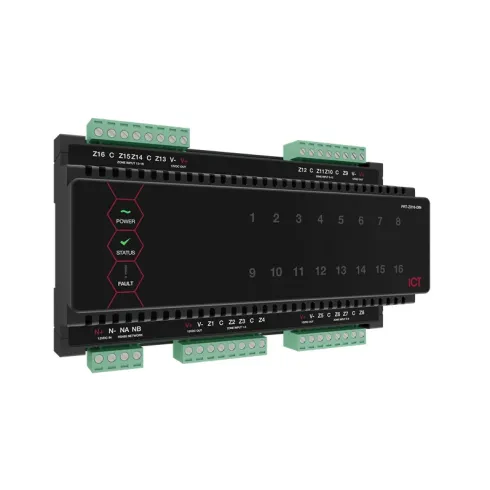

Access Control System Protege DIN Rail 16 Input Expander 2 ~blog/2022/7/1/prt_zx16_din_2

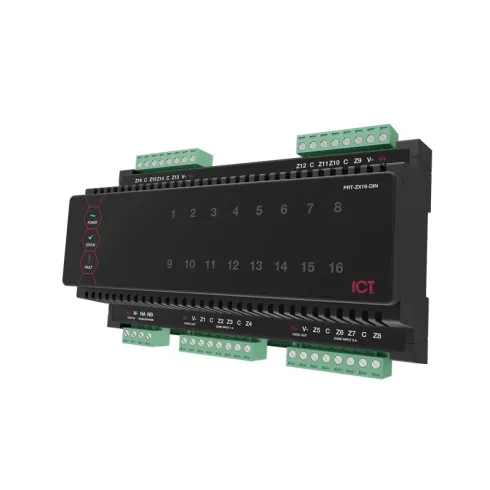

Access Control System Protege DIN Rail 16 Input Expander 3 ~blog/2022/7/1/prt_zx16_din_3

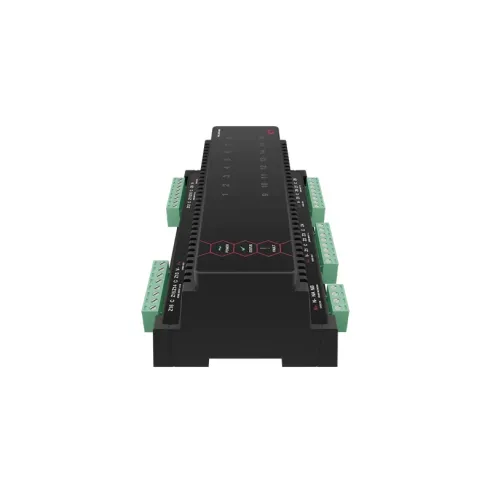

Access Control System Protege DIN Rail 16 Input Expander 4 ~blog/2022/7/1/prt_zx16_din_4
  • Features
  • Specification

    • Specification

    • DC Input Voltage : 11-14VDC
    • DC Output Voltage : (DC IN Pass-Through) : 10.83-14.0VDC 0.7A (Typical) Electronic Shutdown at 1.1A
    • Operating Current : 80mA (Typical)
    • Total Combined Current* : 3A (Max)
    • Low Voltage Cutout : 8.7VDC
    • Low Voltage Restore : 10.5VDC
    • Communication RS-485 : Module Network
    • Inputs : 16 High Security Monitored Inputs (10ms to 1hr Input Speed Programmable)
    • Trouble Inputs : 16
    • Dimensions (L x W x H) : 156.8 x 90 x 60mm (6.17 x 3.54 x 2.36")
    • Net Weight : 280g (9.9oz)
    • Gross Weight : 350g (12.3oz)
    • Operating Temperature : UL/ULC 0° to 49°C (32° to 120°F) : EU EN -10° to 55°C (14° to 131°F)
    • Storage Temperature : -10˚ to 85˚C (14˚ to 185˚F)
    • Humidity : 0%-93% non-condensing, indoor use only (relative humidity)
