Protege DIN Rail 2 Door Reader Expander

PRT-RDM2-DIN-485

The Protege DIN Rail 2 Door Reader Expander delivers up to 4 reader inputs and 2 locking device outputs for access management in the Protege system.

With 8 inputs that can be used for extended monitoring functionality, and 6 open collector outputs available for management of controllable devices, the DIN Rail 2 Door Reader Expander features extensive hardware advancements that support flexible security and access control, alarm monitoring and building automation.

Feature & Specification

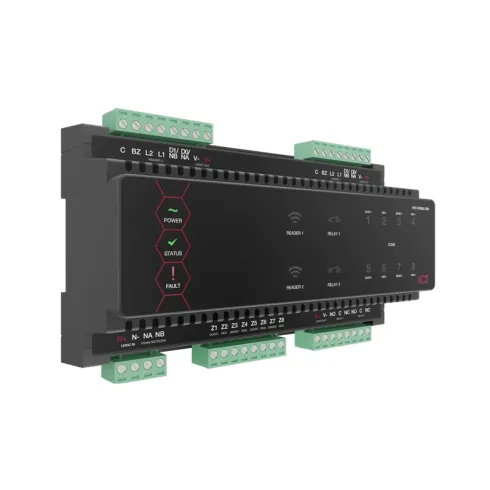

Access Control System Protege DIN Rail 2 Door Reader Expander 1 ~blog/2022/7/1/prt_rdm2_din_front

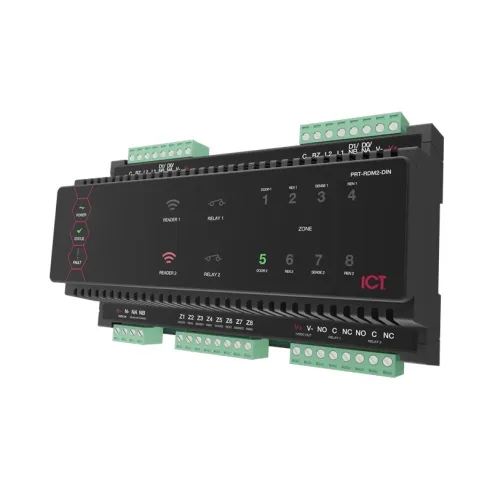

Access Control System Protege DIN Rail 2 Door Reader Expander 2 ~blog/2022/7/1/prt_rdm2_din_2

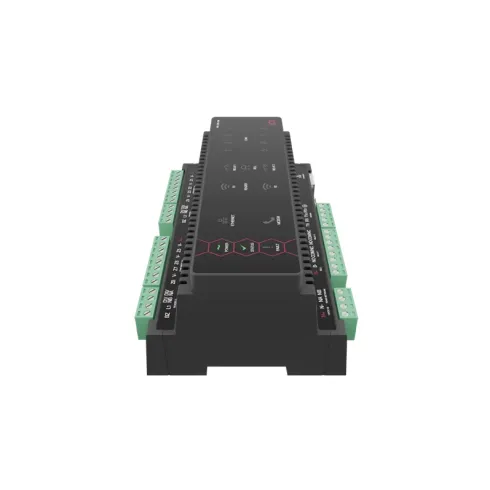

Access Control System Protege DIN Rail 2 Door Reader Expander 3 ~blog/2022/7/1/prt_rdm2_din_3

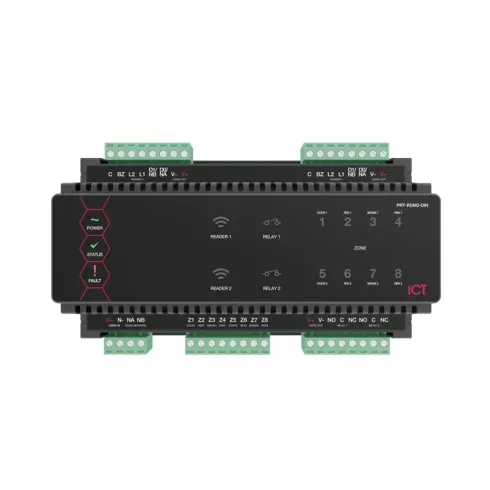

Access Control System Protege DIN Rail 2 Door Reader Expander 4 ~blog/2022/7/1/prt_rdm2_din_4

Features
Specification

Features

> 2 reader ports, independently configurable for either Wiegand or RS-485 operation
> OSDP configurable RS-485
> Connect up to 4 readers, providing dual entry and exit door configuration
> Fused and monitored reader power supply
> Designed for use with industry standard DIN rail mounting
> Support for intelligent tamper operation. Readers are monitored for keep-alive transmissions using the programmed protocol
> Offline functions including No Users, All Users and First 10 Users plus 150 Card Cache
> Over 40 predefined reading formats
> Control up to 3 outputs per reader port with predefined configurations for instant connection

Specification

• DC Input Voltage : 11-14VDC
• DC Output Voltage (DC IN Pass Through) : 10.83-14.0VDC 0.7A (Typical) Electronic Shutdown at 1.1A. Reader 1&2 10.45-13.85VDC Pass Through share 0.7A (Typical) Electronic Shutdown at 1.1A
• Operating Current : 80mA (Typical)
• Total Combined Current* : 1.56A (Max)
• Low Voltage Cutout : 8.7VDC
• Low Voltage Restore : 10.5VDC
• Communication RS-485 : Module network
• Offline Access Modes : All Users, First 10 Users plus 150 Card Cache, No Users
• Readers : 2 reader ports that can be independently configured for either Wiegand (up to 1024 bits configurable) or RS-485, allowing connection of up to 4 readers providing entry/exit control for two doors ** RS-485 reader port connections support configuration for OSDP protocol
• Lock Outputs : 2 Form C Relay Outputs - 7A N.O/N.C. at 30 VAC/DC resistive/inductive
• Outputs : 6 (50mA Max) Open Collector
• Inputs : 8 High Security Monitored Inputs (10ms to 1hr Input Speed Programmable)
• Trouble Inputs : 16
• Dimensions (L x W x H) : 156.8 x 90 x 60mm (6.17 x 3.54 x 2.36")
• Net Weight : 300g (10.6oz)
• Gross Weight : 370g (13.1oz)
• Operating Temperature : UL/ULC 0° to 49°C (32° to 120°F) : EU EN -10° to 55°C (14° to 131°F)
• Storage Temperature : -10˚ to 85˚C (14˚ to 185˚F)
• Humidity : 0%-93% non-condensing, indoor use only (relative humidity)
