Protege DIN Rail 8 Output Expander
PRT-PX8-DIN
The Protege DIN Rail 8 Output Expander extends the Protege integrated access control, security and building automation system with an additional 8 outputs for automation.

Featuring high current Form C relays, the output expander provides extensive hardware advancements that allow flexible and structured control of building systems including lighting and HVAC.
Feature & Specification

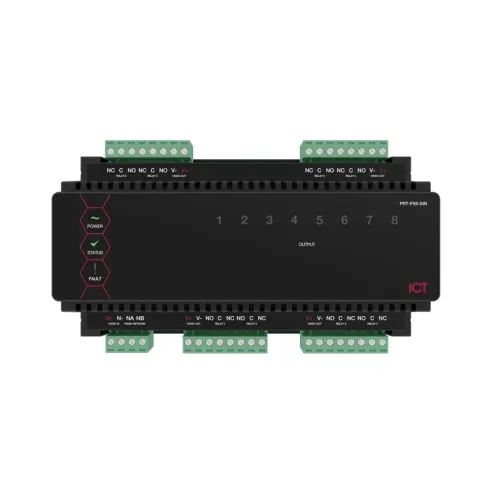

Access Control System Protege DIN Rail 8 Output Expander 1 ~blog/2022/7/1/prt_px8_din_front

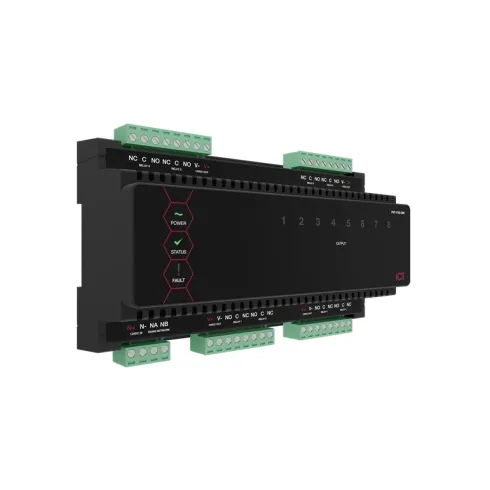

Access Control System Protege DIN Rail 8 Output Expander 2 ~blog/2022/7/1/prt_px8_din_side1

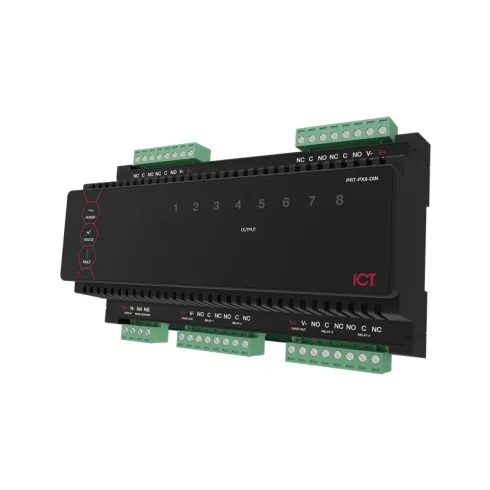

Access Control System Protege DIN Rail 8 Output Expander 3 ~blog/2022/7/1/prt_px8_din_side2

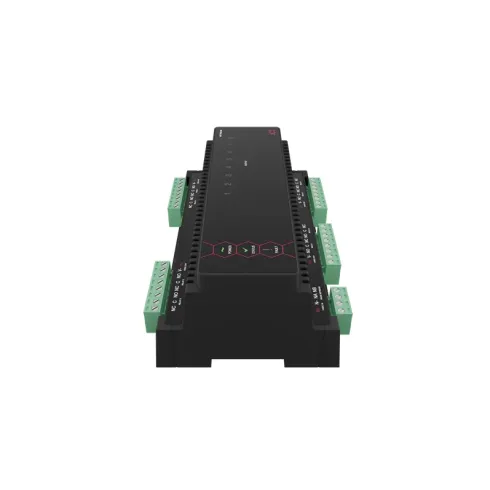

Access Control System Protege DIN Rail 8 Output Expander 4 ~blog/2022/7/1/prt_px8_din_top
  • Features
  • Specification

    • Specification

    • DC Input Voltage : 11-14VDC
    • DC Output Voltage (DC IN Pass-Through) : 10.83-14.0VDC 0.7A (Typical) Electronic Shutdown at 1.1A
    • Operating Current : 80mA (Typical)
    • Total Combined Current* : 3.25A (Max)
    • Low Voltage Cutout : 8.7VDC
    • Low Voltage Restore : 10.5VDC
    • Communication RS-485 : Module Network
    • Programmable Outputs : 8 Form C relays - 7A N.O./N.C. at 30 VAC/DC resistive/inductive
    • Dimensions (L x W x H) : 156.8 x 90 x 60mm (6.17 x 3.54 x 2.36")
    • Net Weight : 340g (12oz)
    • Gross Weight : 410g (14.5oz)
    • Operating Temperature : UL/ULC 0° to 49°C (32° to 120°F) : EU EN -10° to 55°C (14° to 131°F)
    • Storage Temperature : -10˚ to 85˚C (14˚ to 185˚F)
    • Humidity : 0%-93% non-condensing, indoor use only (relative humidity)
