Protege GX DIN Rail Integrated System Controller
PRT-CTRL-DIN
The Protege GX DIN Rail Integrated System Controller is the central processing unit responsible for the control of security, access control and building automation in the Protege GX system.

It communicates with all system modules, stores all configuration and transaction information, processes all system communication, and reports alarms and system activity to a monitoring station or remote computer.
Feature & Specification

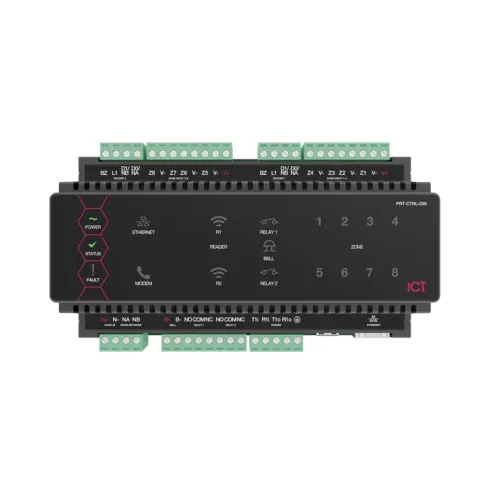

Access Control System Protege GX DIN Rail Integrated System Controller 1 ~blog/2022/7/1/prt_ctrl_din_front

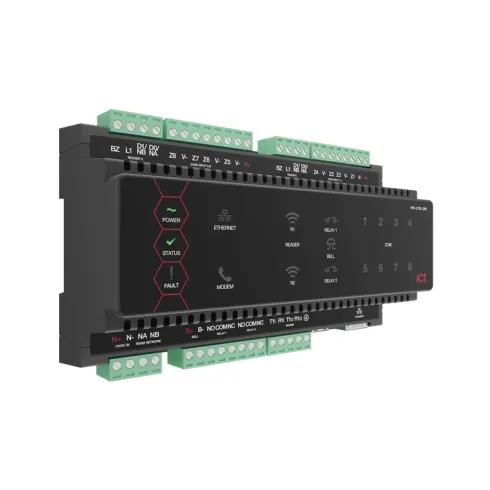

Access Control System Protege GX DIN Rail Integrated System Controller 2 ~blog/2022/7/1/prt_ctrl_din_side1

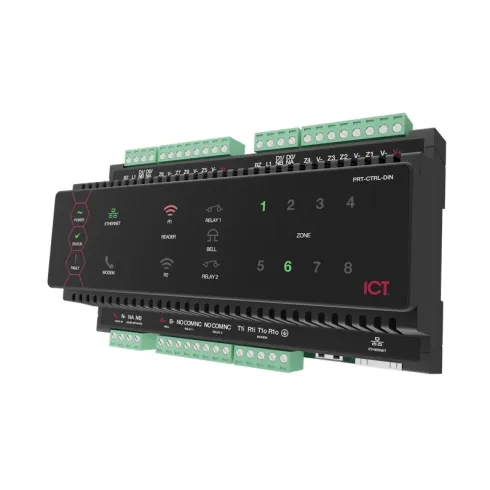

Access Control System Protege GX DIN Rail Integrated System Controller 3 ~blog/2022/7/1/prt_ctrl_din_side2

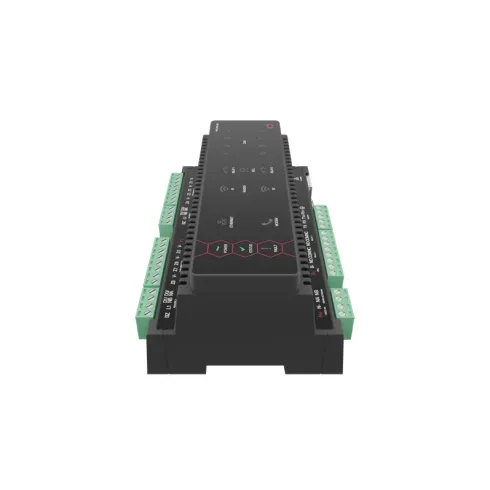

Access Control System Protege GX DIN Rail Integrated System Controller 4 ~blog/2022/7/1/prt_ctrl_din_top
  • Features
  • Specification

    • Specification

    • Operating Voltage : 11-14V DC
    • Operating Current : 120mA (Typical)
    • DC Output (Auxiliary) : 10.45-13.85VDC 0.7A (Typical) electronic shutdown at 1.1A
    • Bell DC Output (Continuous) : 10.4-13.45VDC 8 ohm 30W Siren or 1.1A (Typical) Electronic Shutdown at 1.6A
    • Bell DC Output (Inrush) : 1500mA
    • Total Combined Current* : 3.4A (max)
    • Electronic Disconnection : 9.0VDC
    • Communication (Ethernet) : 10/100Mbps Ethernet communication link
    • Communication (RS-485) : 3 RS-485 communication interface ports - 1 for module communication, 2 for reader communication
    • Communication (Modem) : 2400bps modem communication
    • Readers : 2 reader ports that can be independently configured for either Wiegand (up to 1024 bits configurable) or RS-485, allowing connection of up to 4 readers providing entry/exit control for two doors ** RS-485 reader port connections support configuration for OSDP protocol
    • Inputs (System Inputs) : 8 high security monitored inputs
    • Outputs : 4 50mA (max) open collector outputs for reader LED and beeper or general functions
    • Relay Outputs : 2 Form C relays - 7A N.O/N.C. at 30 VAC/DC resistive/inductive
    • Dimensions (L x W x H) : 156 x 90 x 60mm (6.14 x 3.54 x 2.36")
    • Net Weight : 360g (12.7oz)
    • Gross Weight : 440g (15.5oz)
    • Operating Temperature : UL/ULC 0° to 49°C (32° to 120°F) : EU EN -10° to 55°C (14° to 131°F)
    • Storage Temperature : -10˚ to 85˚C (14˚ to 185˚F)
    • Humidity : 0%-93% non-condensing, indoor use only (relative humidity)
