Protege GX DIN Rail Single Door Controller

PRT-CTRL-DIN-1D

The Protege GX DIN Rail Single Door Controller is the central processing unit responsible for the control of security, access control and building automation in the Protege GX system.

It communicates with all system modules, stores all configuration and transaction information, processes all system communication, and reports alarms and system activity to a monitoring station or remote computer.

Feature & Specification

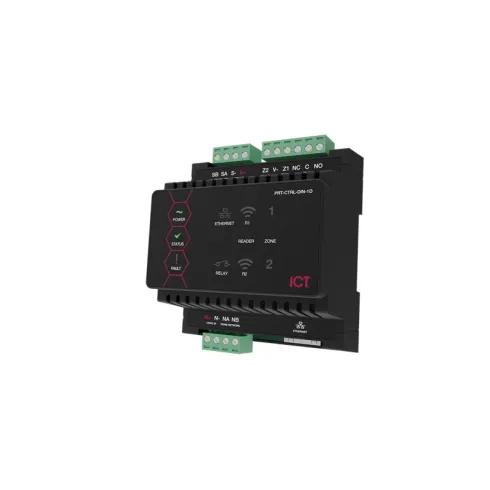

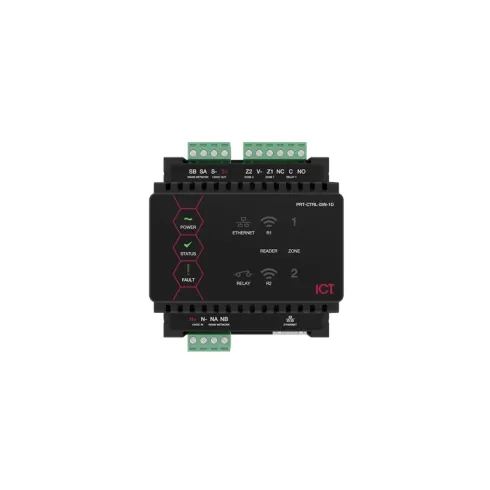

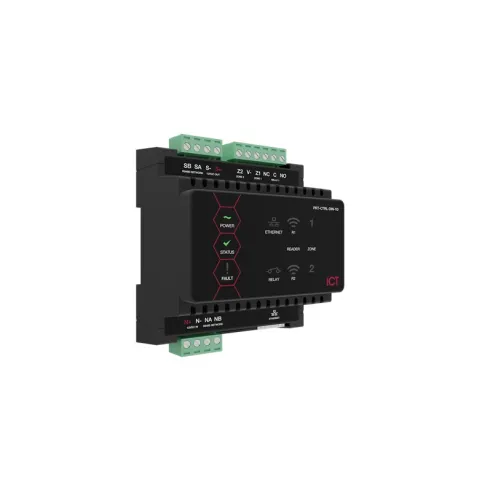

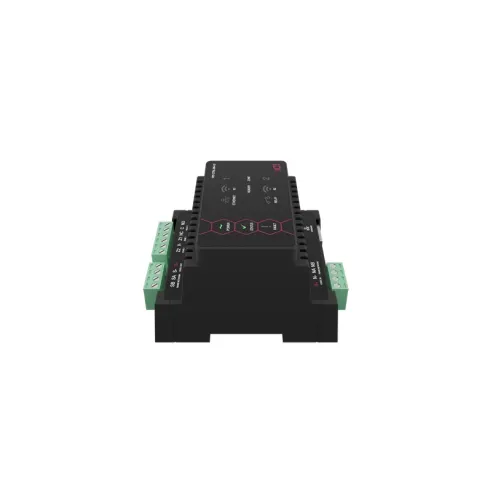

Access Control System Protege GX DIN Rail Single Door Controller 1 ~blog/2022/7/1/prt_ctrl_din_1d_front

Access Control System Protege GX DIN Rail Single Door Controller 2 ~blog/2022/7/1/prt_ctrl_din_1d_side1

Access Control System Protege GX DIN Rail Single Door Controller 3 ~blog/2022/7/1/prt_ctrl_din_1d_side2

Access Control System Protege GX DIN Rail Single Door Controller 4 ~blog/2022/7/1/prt_ctrl_din_1d_top

Features
Specification

Features

> Internal industry standard 10/100 Ethernet connection
> 32 Bit advanced RISC processor with 2Gb total memory
> Encrypted module network using RS-485 communication
> NIST Certified AES 128, 192 and 256 Bit Encryption
> Factory loaded HTTPS certificate
> 1 integrated RS-485 reader port, allowing connection of 2 readers providing entry and exit control of a single door
> OSDP configurable RS-485
> 2 high security monitored inputs
> 1 high current Form C relay output
> Designed for use with industry standard DIN rail mounting

Specification

• Operating Voltage : 11-14V DC
• Operating Current : 120mA (Typical)
• DC Output : 10.45-13.85VDC 0.7A (Typical) electronic shutdown at 1.1A
• Total Combined Current* : 0.82A (Max)
• Electronic Disconnection : 9.0VDC
• Communication (Ethernet) : 10/100Mbps ethernet communication link
• Communication (RS-485) : 2 RS-485 communication interface ports - 1 for module communications, 1 for reader communications
• Readers : 1 RS-485 enabled reader port, allowing connection of up to 2 RS-485 capable readers providing entry/exit control for a single door. RS-485 reader port connections support configuration for OSDP protocol
• Inputs : 2 high security monitored inputs
• Relay Outputs : 1 Form C Relay - 7A N.O/N.C. at 30 VAC/DC resistive/inductive
• Dimensions (L x W x H) : 78 x 90 x 60mm (3.07 x 3.54 x 2.36")
• Net Weight : 170g (6oz)
• Gross Weight : 230g (8.1oz)
• Operating Temperature : -10° to 55°C (14° to 131°F)
• Storage Temperature : -10˚ to 85˚C (14˚ to 185˚F)
• Humidity : 0%-93% non-condensing, indoor use only (relative humidity)
