Protege Module Network Repeater
PRT-MNR2-DIN
The Protege DIN Rail Module Network repeater is designed to extend the network capabilities of the Protege system. The repeater is added to the system via the RS-485 or Ethernet and provides optical isolation between up to three branches of the module network, easing power requirements.
Feature & Specification

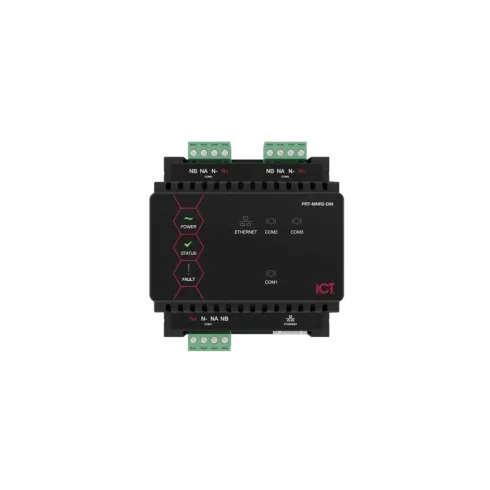

Access Control System Protege Module Network Repeater 1 ~blog/2022/7/1/prt_mnr2_din_front

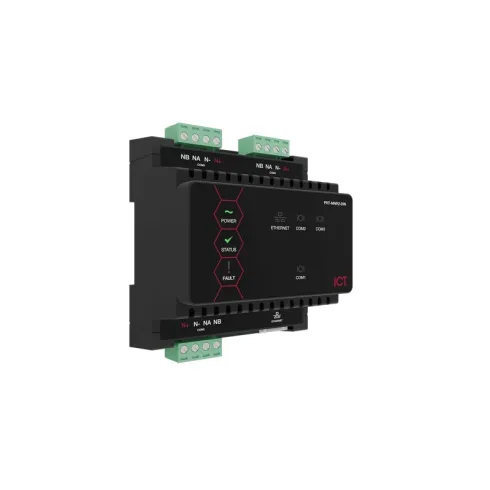

Access Control System Protege Module Network Repeater 2 ~blog/2022/7/1/prt_mnr2_din_side1

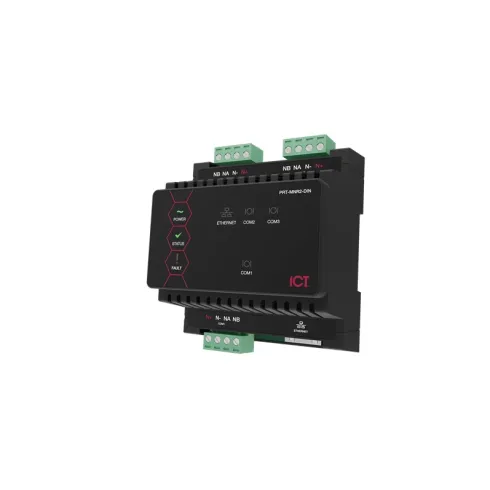

Access Control System Protege Module Network Repeater 3 ~blog/2022/7/1/prt_mnr2_din_side2

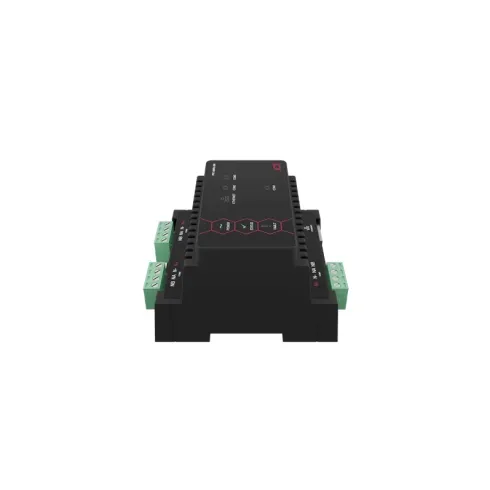

Access Control System Protege Module Network Repeater 4 ~blog/2022/7/1/prt_mnr2_din_top
  • Features
  • Specification

    • Specification

    • Operating Voltage : 12V DC
    • Operating Current : 65mA (Typical)
    • RS-485 : 3 isolated RS-485 communication interface ports
    • Ethernet : 1 10/100Mbps Ethernet Communication Link
    • Ports : Port 80 TCP/IP HTTP (Controller Web Interface) Fixed, Port 9450 UDP/IP (Network Repeater to Controller)
    • Dimensions (L x W x H) : 78 x 90 x 60mm (3.07 x 3.54 x 2.36")
    • Net Weight : 150g (5.3oz)
    • Gross Weight : 220g (7.8oz)
    • Operating Temperature : -10° to 55°C (14° to 131°F)
    • Storage Temperature : -10˚ to 85˚C (14˚ to 185˚F)
    • Humidity : 0%-93% non-condensing, indoor use only (relative humidity)

Download
Protege Module Network Repeater 1
