Compact Fingerprint Reader

BioEntry R2

Suprema BioEntry R2 is a Compact RFID card & Fingerprint Reader exclusively designed for centralized access control systems. Packed in a slim, mullion-type design, BioEntry R2 provides high-definition fingerprint image capture, minutiae extraction as well as dual-frequency multi RF card reading capability. Combined with Suprema’s intelligent biometric controller, the CoreStation, BioEntry R2 completes biometrics-driven access control system with enhanced simplicity and level of security of centralized system topology.

Feature & Specification

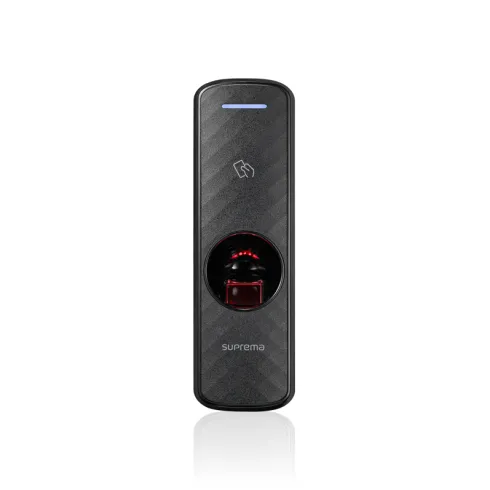

Biometric Reader Compact Fingerprint Reader 1 ~blog/2022/6/7/r21

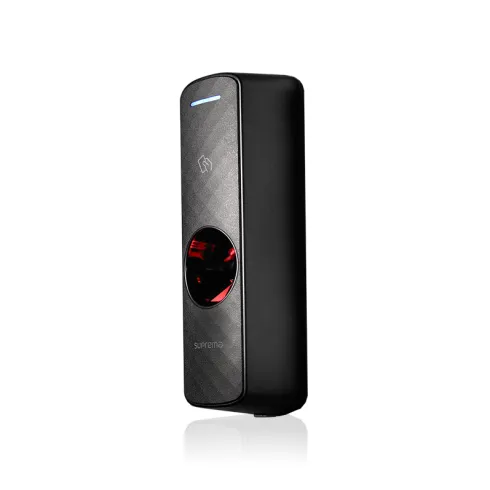

Biometric Reader Compact Fingerprint Reader 2 ~blog/2022/6/7/p22

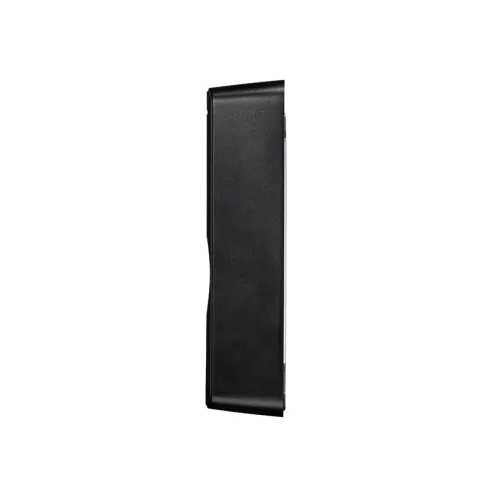

Biometric Reader Compact Fingerprint Reader 3 ~blog/2022/6/7/r23

Features
Specification

Features

> Multi RFID card reading
• LF(125kHz), HF(13.56MHz) dual-band
• Reads all primary card types (EM, MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa, NFC)
> Field-proven ﬁngerprint technology
• Latest Suprema ﬁngerprint algorithm
• High-precision OP5 optical sensor
> Standardized communication
• Open Supervised Device Protocol (OSDP)

Specification

• Biometric : Fingerprint
• Sensor Type : Optical Sensor (OP6)
• Template : SUPREMA / ISO 19794-2 / ANSI 378
• Extractor / Matcher : MINEX certiﬁed and compliant
• RF Option : 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2*, FeliCa, NFC
• CPU : 1.0 GHz
• Memory : 32MB Flash + 32MB RAM
• LED : Multi-Color
• Sound : Multi-tone Buzzer
• RS-485 : 1ch Slave, OSDP V2.1.6
• Tamper : Supported
• Power : DC 12V
• Operating Temperature : -20°C ~ 50°C
• Operating Humidity : 0% ~ 80%, non-condensing
• Dimensions (WxHxD, mm) : 50 x 164 x 37.5
• Weight : 158g
