Fusion Multimodal Terminal | Biometric Reader

Biometric Reader

Fusion Multimodal Terminal

FaceStation F2

Suprema FaceStation F2 is a fusion multimodal terminal with unmatched face recognition performance.
Experience the exceptional authentication accuracy and anti-spoofing performance achieved by Suprema’s unique Fusion technology.

Feature & Specification

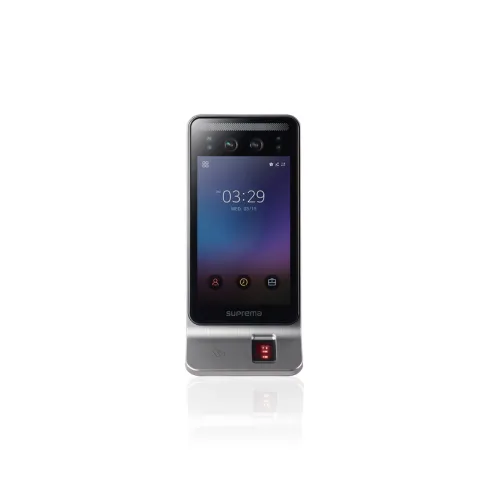

Biometric Reader Fusion Multimodal Terminal 1 ~blog/2022/6/8/f21

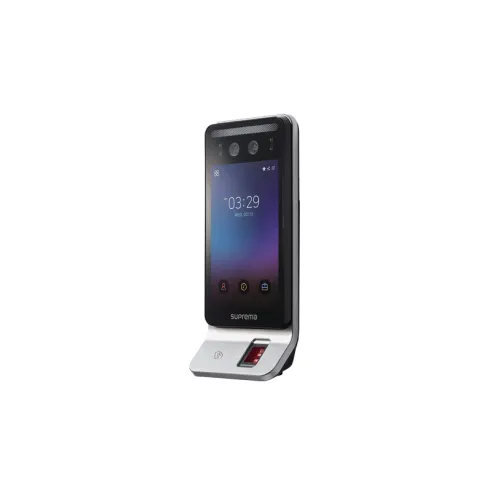

Biometric Reader Fusion Multimodal Terminal 2 ~blog/2022/6/8/f22

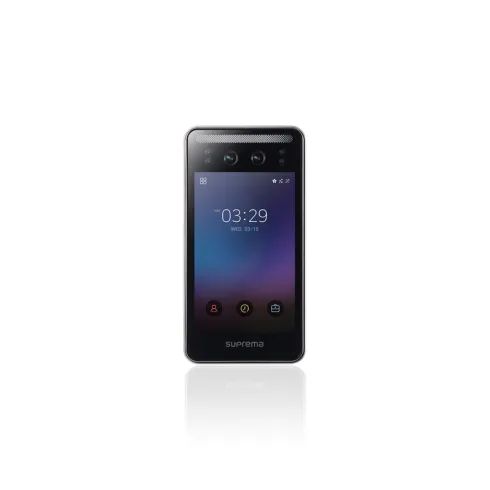

Biometric Reader Fusion Multimodal Terminal 3 ~blog/2022/6/8/f23

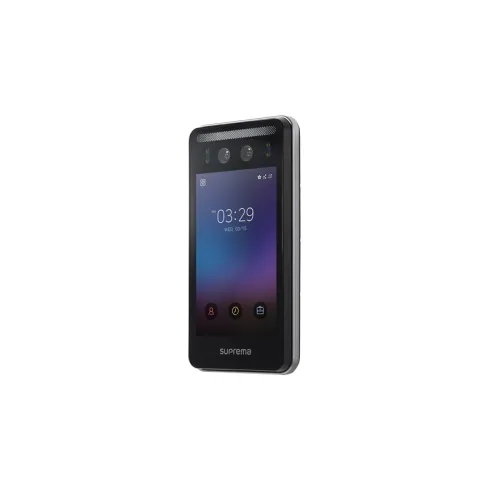

Biometric Reader Fusion Multimodal Terminal 4 ~blog/2022/6/8/f24

Features
Specification

Features

> Suprema's unique algorithm optimizes IR and visual face recognition to produce the industry's best face recognition and anti-spoofing performance
> Profen track record of of authentication performance regardless of user ethnicity and face changes powered by deep learning algorithm
> Register up to 100,000 users for fingerprint authentication and 50,000 users for face authentication
> Support dual frequency access cards, NFC and BLE-based Mobile Access Card
> Template-on-Card allows authentication via biometric data stored in cards
> Highest level of device security including secure booting process
> Encrypts all biometric credentials and personal information
> Built on Android and all its security enchancements

Specification

• Biometric : Face (FSF2-DB & FSF2-AB) Face, Fingerprint (FSF2-ODB)
• RF Option : 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa (FSF2-DB) 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa, iCLASS SE/SR/Seos (FSF2-AB) 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa (FSF2-ODB)
• RF Read Range* : EM/MIFARE/DESFire : 50 mm (2"), FeliCa: 30 mm (1.2")
• Mobile : NFC, BLE
• CPU : 1.8 GHz Dual Core + 1.4 GHz Quad Core
• Memory : 16GB Flash + 2GB RAM
• LCD Type : 7” IPS color LCD
• LCD Resolution : 800 x 1280 pixels
• Sound : 16bit
• Operating Temperature : -20°C ~ 50°C (-68°F ~ 122°F)
• Operating Humidity : 0% ~ 80%, non-condensing
• Dimension (W x H x D) : 119.8mm x 223mm x 23.5mm (FSF2-DB & FSF2-AB) 119.8mm x 268.4mm x 49.7mm (FSF2-ODB)
• Weight : 585g (FSF2-DB & FSF2-AB) 670g (FSF2-ODB)
• IP Rating : IP65
• Recognition Distance : 0.5m ~ 1.3m (19.7" ~ 51.2")
• Recognition Height : 140cm ~ 190cm (55.1" ~ 74.8")
• Matching Speed : Less than 0.5 sec
• Live Face Detection (Anti-Spooﬁng) : Supported
• Image Dimension : 300 x 400 pixels (FSF2-ODB)
• Resolution : 500 dpi (FSF2-ODB)
• Template : SUPREMA / ISO19794-2, ANSI-378 (FSF2-ODB)
• Extractor / Matcher : MINEX certiﬁed and compliant (FSF2-ODB)
• Sensor Certiﬁcates : FBI PIV and FBI Mobile ID FAP20 (FSF2-ODB)
• Live Fingerprint Detection : Supported SW-based (FSF2-ODB)
• Max. User (1:1) : 100,000
• Max. User (1:N) : Face: 50,000 (FSF2-DB & FSF2-AB) Face: 50,000, Fingerprint: 100,000 (FSF2-ODB)
• Max. Text Log : 5,000,000
• Max. Image Log : 50,000
• Ethernet : 10/100 Mbps, auto MDI/MDIX
• RS-485 : 1ch Host or Slave (Selectable)
• Wiegand : 1ch Input or Output (Selectable)
• TTL Input : 2ch Inputs
• Relay : 1 Relay
• USB : USB 2.0 (Host)
• Tamper : Supported
• Voltage : DC 12V ~ DC 24V
• Current : Max. 2.5 A
