pivCLASS® Biometric Reader

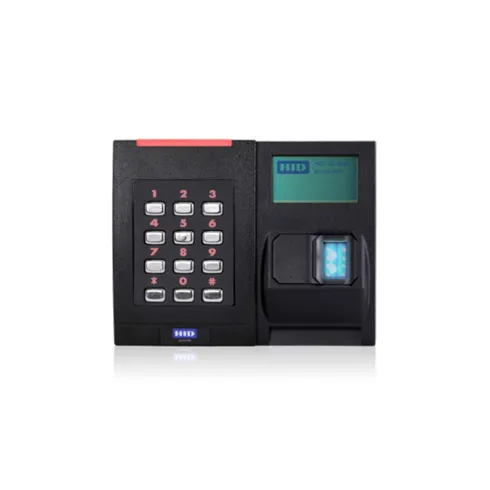

HID® pivCLASS® RKCLB40

HID Global's pivCLASS® Government Solutions portfolio makes it possible for facilities to upgrade their existing physical access control system (PACS) to achieve FIPS 201 compliance.
The pivCLASS Biometric Reader (RKCLB40) delivers the "Exclusion" assurance level defined in the National Institute of Standards and Technology (NIST) SP 800-116 guidelines. This reader works with the pivCLASS Authentication Module (PAM) or pivCLASS Embedded Authentication to perform three authentication checks: PIV + PIN + BIO.

Feature & Specification

Biometric Reader pivCLASS® Biometric Reader 1 ~blog/2022/6/8/rkclb40

Features
Specification

Features

> Part of an integrated solution from a single, trusted provider - Enables compliance per NIST SP 800-116 guidelines and the TWIC Reader Specification.
> Contact biometric (BIO) reader solution for "Exclusion" security areas - Meets NIST's "Exclusion" assurance-level requirements with three-factor PIV + PIN + BIO authentication.
> Supports multiple card types – Works with PIV, PIV-I, CAC, CIV (a.k.a., PIV-C), TWIC, FRAC and iCLASS® cards for easy, phased transitions from legacy technology to new PKI-enabled smart cards.

Specification

• 13.56 MHz Card Compatibility : PKI-Based FIPS-201 Credentials including PIV, PIV-I, CIV, CAC, TWIC and FRAC
• System Requirements : These readers require HID Global's pivCLASS Authentication Module (M2000) or pivCLASS Embedded Authentication in the connected controller to support FICAM compliance
• Typical Contactless Read Range : FIPS 201 type cards can be read using either the contact or contactless card interface. Biometric authentication only available on the contact interface per FIPS 201
• FIPS 201 Type Cards, Contactless Interface PIV, PIV-I, CIV, CAC, TWIC and FRAC : FIPS-201 (5 cm)
• 13.56 MHz Single Technology ID-1 Cards – SIO Data Model : iCLASS® Seos® (5 cm) iCLASS® (14 cm) MIFARE DESFire EV1 (5 cm) MIFARE® Classic (13 cm)
• Mounting : Double-gang size; designed to mount on double (preferable for stable wall mount) or single-gang switch box
• Color : Black
• Keypad : Yes (illuminated, 4 x 3)
• Dimensions : 4.8" x 6.1" x 1.2" (12.2 cm x 15.6 cm x 3.0 cm)
• Product Weight (Pigtail) : 17.0 oz (484 g)
• Product Weight (Terminal Strip) : 16.0 oz (454 g)
• Operating Voltage Range : +12VDC
• Current Draw - Normal Standby Current : 165 mA
• Current Draw - Maximum Average : 215 mA
• Current Draw – Peak : 300 mA
• Operating Temperature : 14° to 122° F (-10° to 50° C)
• Operating Humidity : 5% to 95% relative humidity non-condensing
• Storage Temperature : -67° to 185° F (-55° to 85° C)
• Environmental Rating : UL 294 and IP55 outdoor ratings
• Fingerprint Biometric Sensor Type : Optical
• Transmit Frequency : 13.56 MHz
