Biometric Reader Smart Card Reader – Wall Switch Keypad with Biometric ENID
Home /
Biometric Reader
Smart Card Reader – Wall Switch Keypad with Biometric

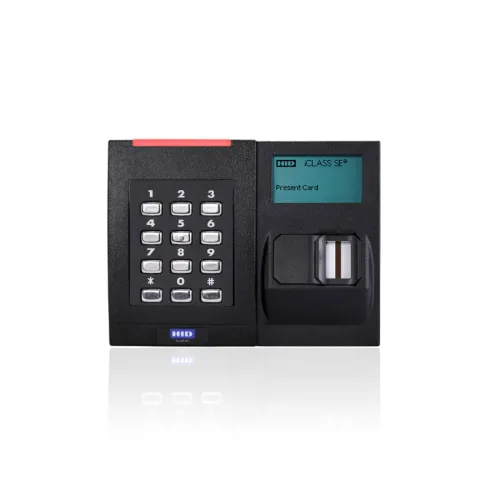

HID® iCLASS SE® RKLB40
The iCLASS SE® RKLB40 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for door applications requiring multi-factor authentication including biometric templates on iCLASS Seos® , iCLASS SE, iCLASS®, iCLASS SE® RKLB40 supports a broad array of credential technologies and a variety of form factors, including cards and fobs.
Feature & Specification
Biometric Reader Smart Card Reader – Wall Switch Keypad with Biometric 1 ~blog/2022/6/8/rklb40
  • Features
  • Specification

    • Specification

    • 13.56 MHz Credential Compatibility : iCLASS® Seos® 8kB (iCLASS® Seos® 16kB NOT COMPATIBLE) Standard iCLASS® 16-32k bit Access Control Application (iCLASS SE and 2k bit Standard iCLASS NOT COMPATIBLE)
    • Read Range (Single Technology ID-1 Cards) : iCLASS® Seos™ (3 cm) iCLASS® (12 cm)
    • Mounting : Double-gang size; designed to mount on double (preferable for stable wall mount) or single-gang switch box
    • Color : Black
    • Keypad : Yes (illuminated, 4 x 3)
    • Display : Yes (illuminated)
    • Dimensions : 4.8” x 6.1” x 1.2” (12.2 cm x 15.6 cm x 3.0 cm)
    • Product Weight (Terminal Strip) : 16.0 oz (454 g)
    • Operating Voltage Range : +12VDC
    • Current Draw - Normal Standby Current : 195mA
    • Current Draw - Maximum Average : 255mA
    • Current Draw – Peak : 320mA
    • Operating Temperature : 14° to 122° F (-10° to 50° C)
    • Operating Humidity : 5% to 95% relative humidity non-condensing
    • Storage Temperature : -67˚ to 185˚ F (-55˚ to 85˚ C)
    • Environmental Rating : UL 294 and IP55 indoor / outdoor ratings
    • Fingerprint Biometric Sensor Type : Optical

Download
Smart Card Reader – Wall Switch Keypad with Biometric 1
