Compact Tag - Hand-free Identification Tag
9891900

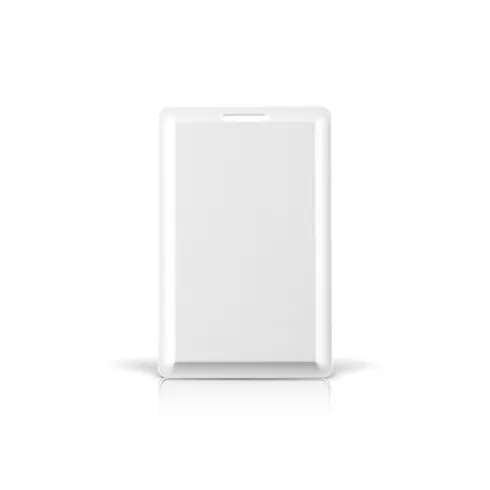

The Compact Tag is a credit card sized tag that enables hands-free identification of people or vehicles. Based on semi active RFID technology (2,45 GHz), the Compact Tag is identified at distances up to 7 meters (23 feet) with Nedap’s TRANSIT Ultimate reader and up to 4 meters (12 feet) with the TRANSIT Entry reader.
Feature & Specification
Card & Credential Compact Tag - Hand-free Identification Tag 1 ~blog/2022/6/15/ctag
  • Features
  • Specification

    • Specification

    • Dimensions : 85,5 x 54 x 5 mm (3.36 x 2.13 x 0.2 in)
    • Color : Grey, according to RAL 7035
    • Weight : 20 g (0.7 oz)
    • Protection class : IP54 (approx. NEMA 2)
    • Material : ASA
    • Operating temperature : -40 ... +85°C (-40 … +185°F)
    • Storage temperature : -40 ... +85°C (-40 … +185°F)
    • Relative humidity : 10% ... 93% relative humidity, non condensing
    • Read range : 7 meters (23 ft) with TRANSIT Ultimate or TRANSIT Standard, 4 meters (12 ft) with TRANSIT Entry
    • Operating frequency : 2.45 GHz / 120 kHz
    • Operating modes : RO-A = read-only, always on, RO-A/b = read-only, always on, battery-low enabled
    • Air interface : Nedap proprietary encoding standard
    • Battery : Built-in lithium battery with expected lifetime of 7 years, under normal usage and normal circumstances. Battery lifetime is not affected by the number of times the tag is read or RF fields from other sources.
    • Mounting : Using optional mounting accessories such as Tag Holder and Card Clip
