Heavy Duty Tag ISO - ATEX-certified Vehicle Identification Tag
9875980

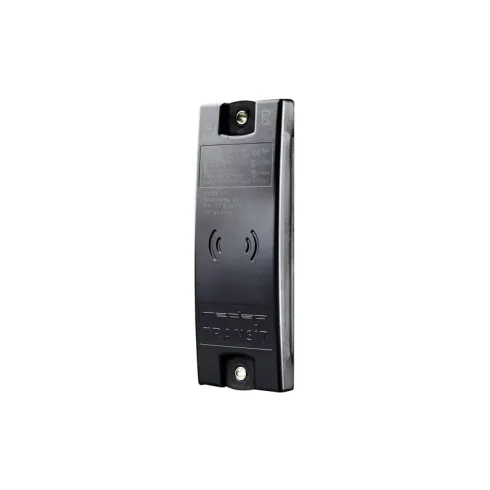

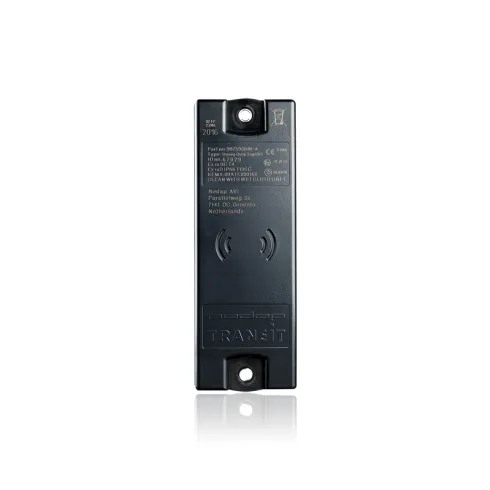

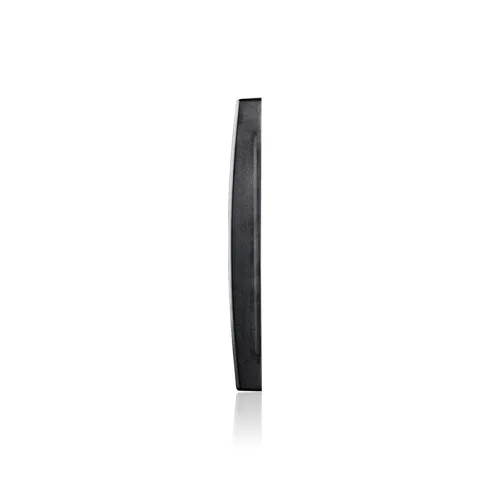

The Heavy Duty Tag ISO is an ATEX-certified vehicle identification tag. Based on semi-active RFID technology (2,45 GHz), the Heavy Duty Tag ISO is identified at distances up to 10 meters (33 feet) with Nedap’s TRANSIT Ultimate reader. As the Heavy Duty Tag ISO is weatherproof, it is ideal for applications that require reliable long-range identification in harsh environmental conditions.
Feature & Specification
Card & Credential Heavy Duty Tag ISO - ATEX-certified Vehicle Identification Tag 1 ~blog/2022/6/15/hd1
Card & Credential Heavy Duty Tag ISO - ATEX-certified Vehicle Identification Tag 2 ~blog/2022/6/15/hd2
Card & Credential Heavy Duty Tag ISO - ATEX-certified Vehicle Identification Tag 3 ~blog/2022/6/15/hd3
  • Features
  • Specification

    • Specification

    • Dimensions : 170 x 60 x 20 mm (6.64 x 2.60 x 0.78 in)
    • Color : Black, according to RAL 9005
    • Weight : 125 g (4.4 oz)
    • Protection class : IP66 [approx. NEMA 6]
    • Material : ASA/PC
    • Operating temperature : -20 ... +80°C (-4.0 +176 °F)
    • Storage temperature : -20 ... +80°C (-4.0 +176 °F)
    • Relative humidity : 10% ... 93% relative humidity, non condensing
    • Read range : 10 meters (33 feet) with TRANSIT Ultimate and TRANSIT Standard
    • Operating frequency : 2.45 GHz / 120 kHz
    • Operating modes : RO-A = read-only, always on, RO-A/b = read-only, always on, battery-low enabled
    • Air interface : Nedap proprietary encoding standard
    • Battery : Built-in lithium battery with an expected lifetime of 10 years. The lifetime is not affected by the number of times the tag is read or by RF fields from other sources.
    • Mounting : Tamperproof mounting to the exterior of a vehicle by means of two M6 bolts, screws, rivets and/or 3M VHB pressure sensitive tape combined with Loctite sealant.
