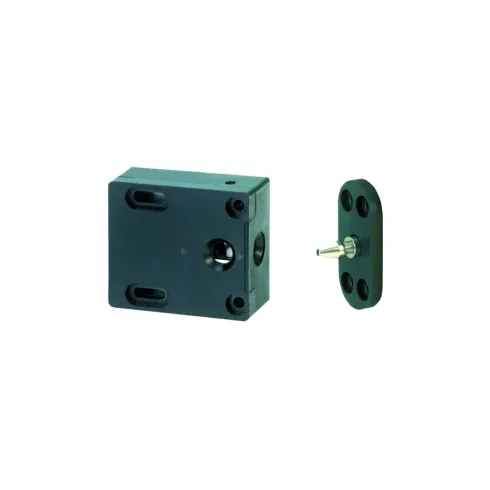

Cabinet lock

1048.10 / 1049.10

For securely locking furniture (wood), effeff has specially developed the cabinet locks 1048.10 and 1049.10. They are versatile, compact and have hig operating comfort. Cabinet locks can be used instead of the standard mechanical locks or additionally as electrical access control.

Feature & Specification

Electronic/ Mechanical Lock Cabinet lock 1 ~blog/2022/6/8/1048

Features
Specification

Features

The cabinet lock is versatile and can be installed either at the side or front, regard-less of whether it is used for drawers or doors. A potential-free change-over contact that has a variety of uses is also available: It shows, for example, the opening state of the door or it can be used for evaluation purposes. It can also be used for additional switching functions so that, e.g. when the door is opened, the lighting is simultaneously switched on.

The cabinet lock can be locked simply by a key switch, or if locking requires electro-nic control, recording and monitoring, the cabinet lock can also be combined with a code or card reading system. The version with the monitoring contact has an additional potential-free change-over contact that monitors the opening state of the door.

Specification

• Optional monitoring contact (RR) : Contact rating 25V / 1A
• Dimensions (L x W x H) in mm (w/o rosette) : 48 x 42 x 20
• Resistance against pressure/tensile strength : 1000 N (approx. 100 kp)
• Protection class as per DIN 40050 : IP 20
• Operating mode : Fail secure, “pop-open” (1048.10) Fail safe/secure, switchable (1049.10)
• Rated operating voltage ± 10% : 12 V DC 900 mA (1048.10) 12 V DC stabilized 260 mA (1049.10) 12 V AC 500 mA (1048.10) 12 V AC 140 mA (1049.10) 24 V DC 450 mA (1048.10) 24 V DC stabilized 130 mA (1049.10) 24 V AC 230 mA (1048.10) 24 V AC 70 mA (1049.10)
• Operating temperature range : -20 ˚C to + 60 ˚C (1048.10) +10 ˚C to + 40 ˚C (1049.10)
