High Security Motorised Drop Bolt with Pre-load Capability EcoLock™
VE1260

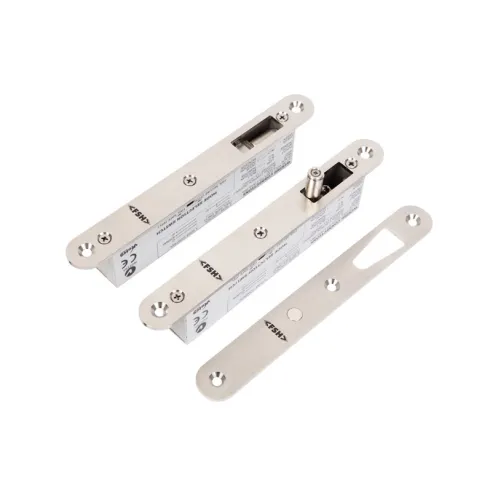

The patented EcoLock VE1260 is a high torque motor driven Drop Bolt with up to 35kg pre-load/side load tolerance. It can be installed vertically in the door frame (lock style) or horizontally in the frame header and has a symmetric dead-bolt mechanism to allow to be used on 180° degree swing through doors.

The VE1260 is considered a “Green Product” as it consumes an inrush current of 290mA @ 12VDConly during locking and unlocking action (Active Mode), then in the locked or unlocked state (Sleep-Mode), the Drop Bolt consumes current less than15mA @ 12VDC.
Feature & Specification
Electronic/ Mechanical Lock High Security Motorised Drop Bolt with Pre-load Capability EcoLock™ 1 ~blog/2022/6/8/ve1260
  • Features
  • Specification

    • Specification

    • Function : Mortice Mount, power-to-lock/power-to-release field interchangeable, up to 35kg of Pre-load capability, unlocking and up to 6.5kg locking
    • Holding Strength : Up to 1000kg
    • Voltage/Current : multi Voltage 12-30Vdc active mode: locking/Unlocking cycle current is 0.29a to 0.85a depending on the side load. more side load = more current. See preload vs. current graph. Sleep-mode: after locking/unlocking the current drops down to ~0.015a (15ma)
    • Approvals : cE, c-tick, Fire rated in accordance with AS1905.1.2005 Part 1 to up to 4 hours on fire door assemblies
    • Monitoring : Lock Status Sensor of the internal locking mechanism. Door Status Sensor Built-in reed Switch, monitoring the door position
    • Environmental : Operational temperature range -20° to +60°c
    • Durability : Exceeding australian Standard aS4145.2-2008, 400,000 operating cycles, Durability D7
    • Strength : Meeting australian Standard aS4145.2-2008, Static Strength S8, Impact Strength S8
    • Maximum Door GAP : 8mm
    • Door Misalignment : Standard Strike Plate + 4mm Special Strike Plate up to + 12mm
