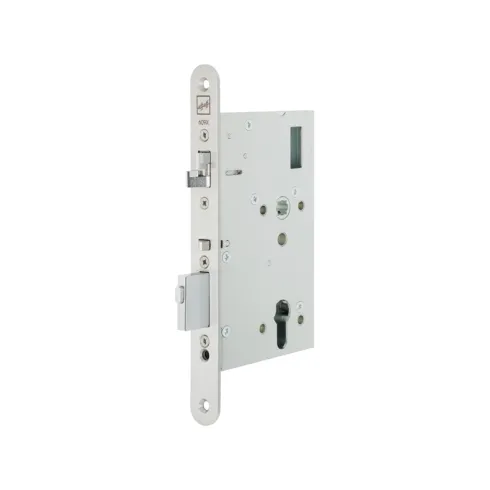

> Automatic locking system: Bolt and latch are blocked, therefore higher level of security > Mechanical follow up control between double action latch and control latch > Integrated panic function via internal door handle > Changeover function for unlocking with a key from the outside
Specification
• Backset : 55, 60, 65, 80, 100 mm • Distance : Euro profile cylinder: 72 mm • Width face plate : 20 mm • Bolt throw : 20 mm • Handle follower : 9 mm • Approval DIN EN 179 : Certificate of Constancy of performance 0432-CPR-00007-11 • DIN EN 1125 approval : Certificate of Constancy of performance 0432-CPR-00007-12 • VdS-approval : G 109 032, M 109314, Z 109001, P-120003555 • Building authorities test certificate P-120003555 • Mech. strength (EN 12209:2004) : 200,000 cycles, 50N load on latch, Class 6 protection
