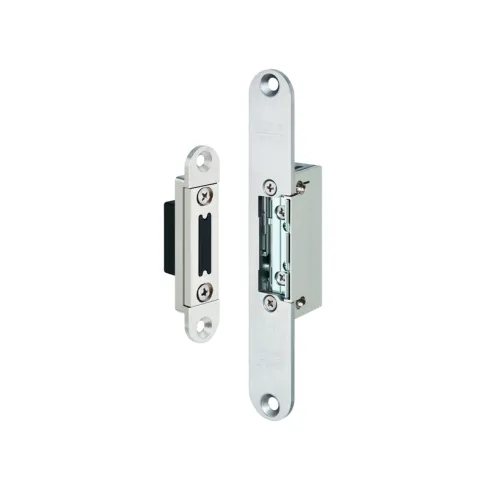

> Latch insertion on the door frame removed > Visually attractive, concealed installation, magnet bolt is retracted when door open > Low opening force due to weak latch bolt spring > No closing force due to magnet bolt > Quiet locking and unlocking > The supplementary locking system 9338 is designed as a supplementary locking system for versatile applications for the locking of doors > Example for other usage options: Office doors, laboratory doors, interlocks, wet cells in hospitals, special doors > Universal installation position, vertical and horizontal > Compatible with model 9334 > Load cycles for factory test: 1,000,000
Specification
• Adjustable keeper (FF, FaFix®) : Yes • Noise reduction : Yes • Diode (05) : Yes • Fail-unlocked : Yes • Weak latch bolt spring : Yes • Input operating voltage : ± 10% • Current consumption 12 V DC : 235 mA • Current consumption 24 V DC : 150 mA • Max. pre-load : 30 N • Break-in resistance : 3000 N • Operating temperature range : -15 °C to +40 °C • Bolt throw : 10 mm • Installation position : Vertical and horizontal • material bolt : plastic • Load cycles for in-plant test : 1000000 • Latch bolt engaging depth : 5,5 mm • FaFix® adjustment range : 4 mm
