Fire Alarm

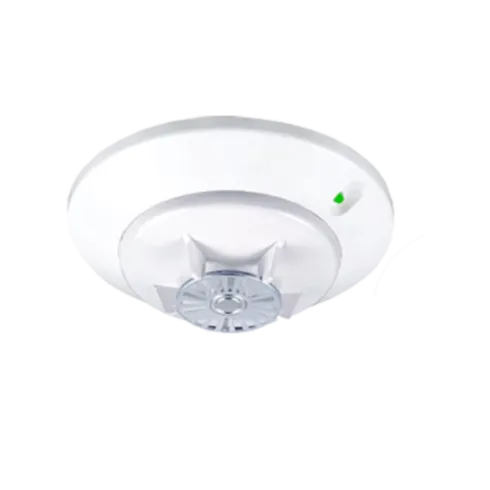

Addressable Fix Heat Detector
CM - RD - 04
Feature & Specification
Features
Specification
Features
Two-wire communication technology.
Stable communication, noise/ interference resistant
Self-test function.
Three-color LED indicator: monitoring, alarm, broken circuit.
-
Specification
Model no: Addressable Fix Heat Detector
Alarming temp. : 70°C
Power input: 16V DC ~ 30V DC.
Power consumption: Static 480μA/24V DC. Alarm 7.6mA/24V DC.
Status indication: Monitoring= Green LED flashing
Alarm= RED LED flashing | Broken circuit= Orange LED flashing
Ambient temperature : -10°C ~ 50°C
Dimension : 150(W)×52(H) mm.
Material: Fire-proof plastics.
-

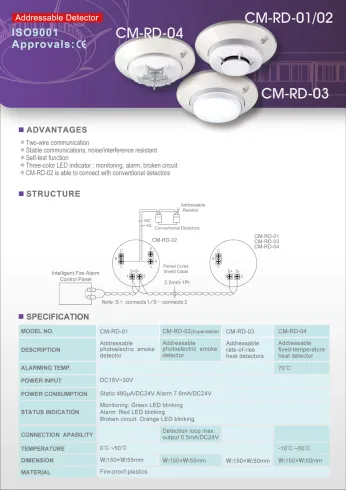

Download
