Fire Alarm Addressable Photoelectric Smoke Detector / Photoelectric Smoke Detector(Expandables) ENID
Home /
Fire Alarm

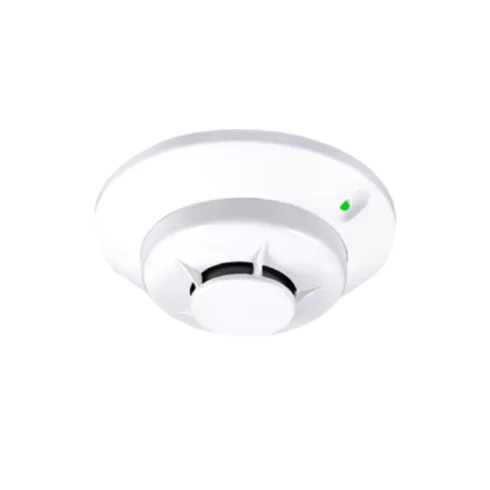

Addressable Photoelectric Smoke Detector / Photoelectric Smoke Detector(Expandables)
CM - RD - 01 /CM - RD - 02
Feature & Specification
Fire Alarm Addressable Photoelectric Smoke Detector / Photoelectric Smoke Detector(Expandables) 1 ~blog/2023/8/9/cm__rd__02

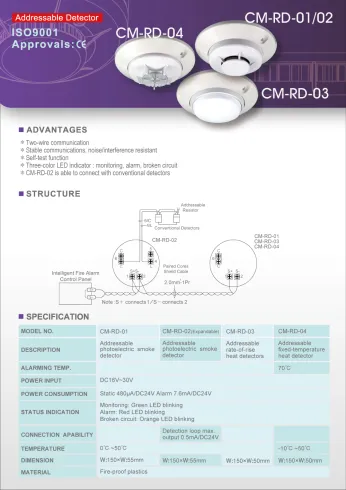

Fire Alarm Addressable Photoelectric Smoke Detector / Photoelectric Smoke Detector(Expandables) 2 ~blog/2023/8/28/rd_01_04_catalog
  • Features
  • Specification

    • Specification

  • Model no: Addressable Photoelectric Smoke Detector / Photoelectric Smoke Detector(Expandables)
  • Alarming temp. : 70°C
  • Power input: 16V DC ~ 30V DC.
  • Power consumption: Static 480μA/24V DC. Alarm 7.6mA/24V DC.
  • Status indication: Monitoring= Green LED flashing
    • Alarm= RED LED flashing | Broken circuit= Orange LED flashing
  • Connection capabilit : Detection loop max. output 0.5mA/24V DC for CM-RD-02
  • Ambient temperature : 0°C ~ 50°C
  • Dimension : 150(W)×55(H) mm.
  • Material: Fire-proof plastics.
    • -
