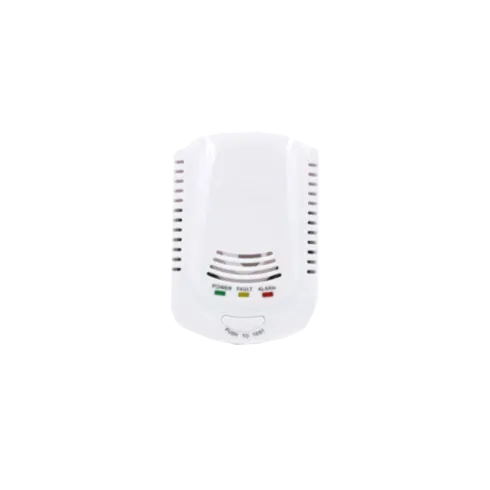

This Product is a Combustible Gas Detector with high stability, it is used for detecting the leakage of LPG (Liquefield petroleum gas) and LNG (Natural gas & methane).
High Sensitivity. Smart combustible gas detector with built‐in microprocessor control parts.
2 Types of Warning Massages: Both human voices message and built‐in buzzer sounds will warn you loudly when alarming.
Automatically detect sensor failure and easy self‐test button.
2 Ways of Usage: Standalone type for household or wiring to control panel for the monitoring system.
3 Colors of Indicating Lights: Easy to read and can immediately tell different situations of Alarm/Fault/Normal.
-
Specification
Model : GSD - 5080(Wall type) GSD -508C (Ceiling Type)
Operating Voltage: 90 Vac~220 Vac, 50-60 Hz.
Sensor: Semiconductor
Initial Stabilization: Within 3 minutes
Alarm Density : 2500 PPM (+ 1500 PPM)
Alarm Indication: Red LED is Alarm with Flashing Continous & Voice‐warning massage.
Alarm Sound Output: 85 db (within 1 meter)
Relay Output : Green: NC, White: NO, Blue: COM
Ambient Temperature : 0°C ‐ 50°C
Relative Humidity: 10% ‐ 95% RH
Dimensions : 112(H) x 73(W) x 42(D) mm
Color: White
Weight: 300 g
Installing Location: Semi‐diameter to gas source < 1.5m 1. LPG (Gas gravity is heavier than air): height from floor 0.3 ~ 1.0m 2. LNG (Gas gravity is lighter than air): height from ceiling 0.3 ~ 1.0m
