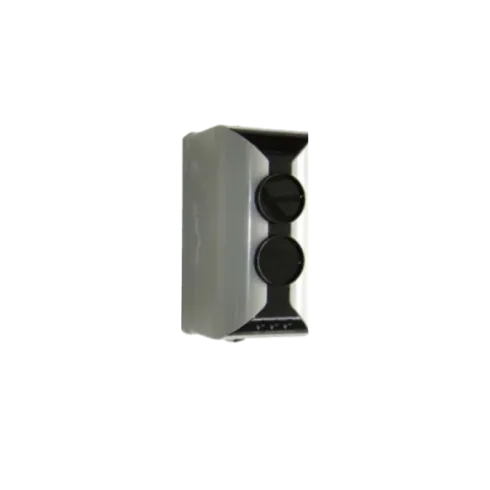

Reflektive Smoke Beam Detector
BEAM - 105
A reflective beam detector is a reflective infrared beam smoke detector, which must be used together with a reflector. The number of reflector (s) to be used (1 to 4) depends on the distance of coverage from the detector. With built-in microprocessor. The detector has capabilities of analysis and judgment. The detector can automatically carry out system adjustment & compensation due to variations in ambiance data, through the output terminals. The detector sensitivity can be field adjustable, to increase the range of application. The detector can be used with both conventional fire alarm panels and our GST range addressable fire alarm panels.
Feature & Specification
Fire Alarm Reflektive Smoke Beam Detector 1 ~blog/2023/8/9/beam__105
  • Features
  • Specification

    • Specification

  • Operating voltage : 24 DC (Range 15vdc to 28VDC).
  • Operating current : Standby current : ≤ 8mA. Alarm current : ≤12mA.
  • Detecting range : Distance from 8m to 100m.
  • Monitoring area : Maximum area = 14 x 100 = 1400 m2. Maximum witdth = 15 m.
  • Wiring : Non - polarized two-core 24 VDC. Non-Polarized two core detection loop.
  • Operational Enviroment : Temparute range = -10° ~ + 50°C. Relative humidity = ≤95%.
  • Dimension : 206 x 95 x 85 mm.
  • Weight : 450 gram.
  • Material : ABS Plastic.
  • Colour : Grey & black.
    • -
