ROR Heat Detector

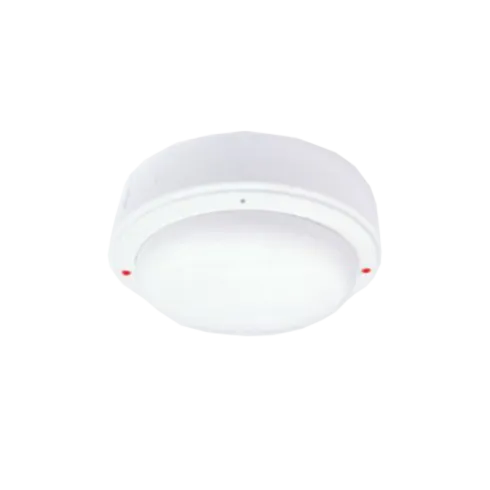

RD - 914L

Operation theory when ambient temperature rises rapidly and has reached the fire disaster standard, the air inside the detector will inflate and presses the copper diaphragm for conduction. When a slower temperature change occurs, the expanded air escapes through a bleeding hole to keep pressure balanced so that the fault alarm never occurs.

Feature & Specification

Fire Alarm ROR Heat Detector 1 ~blog/2023/8/9/rd__914l

Features
Specification

Features

Dual LEDs for 360-degree visibility.

Rate of rise heat detector detects intense fires by quickly responding to rapid temperature increases.

Mechanical operating principles ensure long-term durability and the least malfunction.

Self-restoring function ensures the elements repeatedly use.

Electrical contacts with Silver-palladium alloy to conduct electricity excellently.

The exhaust valve of the ROR Heat Detector part uses an optical fiberglass capillary tube that's heat-resistant and moisture- proof to avoid false alarms.

Specification

Model : RD-914 / FD - 914R.

Type : 2-wire / 3-wire.

Operating voltage: DC 12 ~ 30 V.

Sensitivity Setting: Comply with EN54, CNS.

Alarm Current: 30 mA Max (at DC 24V).

Polarization: Non-polarized / Polarized.

Operating Mode: Always Open Type.

Ambient Temperature : -10°C ~ +55°C.

Relative Humidity : 0 - 95% RH.

Detecting Area : 70 Square meter (Ceiling Height under 4M).

Material : Fire-Proof plastic.
