Long-range UHF Reader for Vehicle Identification
uPASS Target
The uPASS Target is a high-end UHF RFID reader for long-range vehicle identification. Based on passive UHF technology (± 900 MHz), vehicles are identified up to 10 meters (33 feet). The uPASS Target complies with the ISO18000-6C and EPC global Gen 2 directive.
Feature & Specification

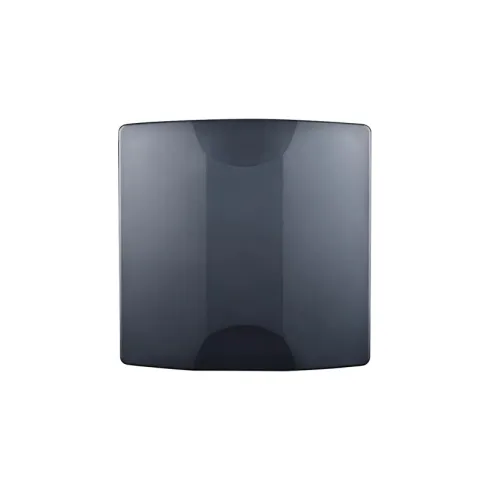

Long Range Reader Long-range UHF Reader for Vehicle Identification 1 ~blog/2022/6/6/target1

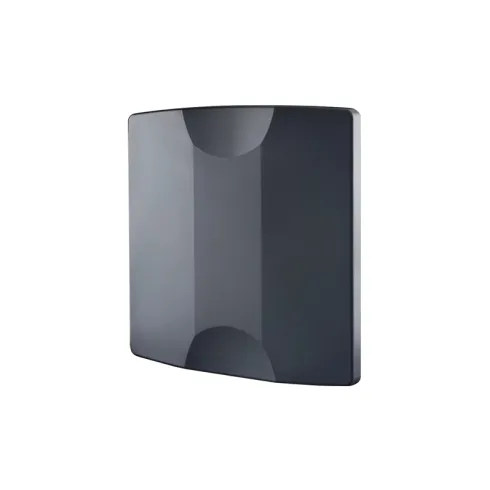

Long Range Reader Long-range UHF Reader for Vehicle Identification 2 ~blog/2022/6/6/target2

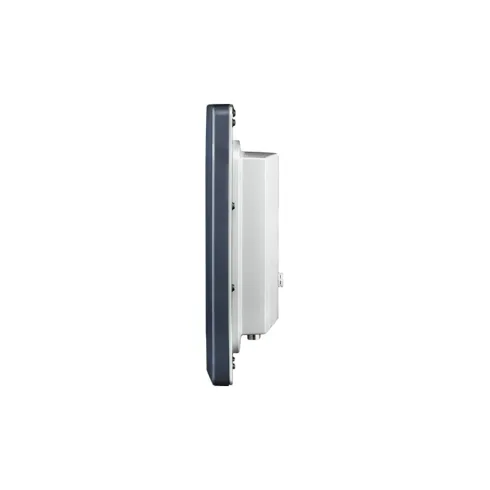

Long Range Reader Long-range UHF Reader for Vehicle Identification 3 ~blog/2022/6/6/target3
  • Features
  • Specification

    • Specification

    • Dimensions : 286 x 285 x 78 mm (11.26 x 11.22 x 3.01 in)
    • Color : RAL 7016 (cover), RAL 9006 (chassis)
    • Weight : 3.5 kg (7.72 lbs)
    • Protection class : IP66
    • Material : Aluminum chassis with UL94 ABS cover
    • Operating temperature : -30… +60°C (-22… +140°F)
    • Storage temperature : -30… +60°C (-22… +140°F)
    • Relative humidity : 10% ... 93% relative humidity, non-condensing
    • Power supply : 12...24 VDC supply recommended / PoE+ PSE IEEE 802.3at compliant
    • Power consumption : 1.5A @12VDC, 0.75@24VDC
    • Read range : Up to 10 meters (33 feet) with passive Nedap UHF tags
    • Operating frequency : 865-868 MHz uPASS Target Region 1, 902-928 MHz uPASS Target Region 2&3
    • Antenna polarization : Circular polarization
    • Air interface : According to ISO 18000-6 C
    • Communication interfaces : RS422 / RS485 , Ethernet 10/100Mbps and USB service interface
    • Communication protocols : OSDP, CR/LF, DC2/DC4 and various OEM protocols (for more information see firmware manuals).
    • Relay output : 1 relay output (NO, common, NC), 24 VDC 2A
    • Input : 2 digital input for LED control - active low inputs (0V - 5V), 1 digital input for reader disable - active low inputs (0V - 5V)
    • Output : Wiegand, Magstripe (clock & data)
    • Antenna input : 1x TNC, supports external (Nedap) antenna
    • Connectors : Cable assembly M12 and IP67 Ethernet connectors are included
