Dual Interface Contact and Contactless Smart Card Reader

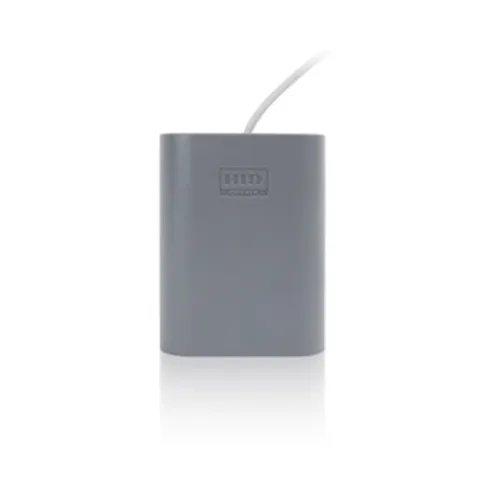

HID® OMNIKEY® 5422

The OMNIKEY® 5422 represents the ultimate combination of contact and contactless technology in a single device. The solution features a dual interface, PC-linked reader that reads / writes to both a 13.56 MHz contactless smart card and virtually any contact smart card to support environments where both contact and contactless smart card technologies are required.

The reader provides users with the convenience, speed and security for applications such as user authentication to PCs, software, cloud-based applications, networks and web sites.

Feature & Specification

Omnikey Reader Dual Interface Contact and Contactless Smart Card Reader 1 ~blog/2022/6/6/54221

Omnikey Reader Dual Interface Contact and Contactless Smart Card Reader 2 ~blog/2022/6/6/54222

Features
Specification

Features

> Versatile – Ideal for end-user environments using both contact and contactless smart card technology and migration scenarios
> Leverages existing employee badge – Expands the usage of existing physical access cards to computer logon, as well as network and cloud applications.
> Easy to install – Eliminates the need to install drivers; uses native supported CCID drivers within the operating system.
> Increased security and improved user experience – Read and retrieve highly secure one-time passwords (OTP) from Seos® card.

Specification

• Standards & Protocols : ISO7816 Class A/B/C, T=0, T=1, S=8, S=9, S=10 (I²C, 2WBP, 3WBP)
• Voltage : 5V, 3V, 1.8V
• Card Size : ID1 (Full size)
• Power to Smart Card : 60mA
• Detection : Movement detection with auto power-off / Automatic detection of smart card type/ Short circuit and thermal protection
• 8-PIN Handling : C4 / C8 supported
• Protocols : T=CL, MIFARE®, iCLASS® ISO 14443A/B - up to 848 kbps (depending on card) iCLASS 15693 up to 26kbps (depending on card)
• USB Interface : USB 2.0 Full Speed Device (12 MBps), USB 3.0 extended operability, tested with hubs/controllers
• Connector / Cable : USB Type A connector; 59.1” (150 cm) cable
• Operating Systems : Windows 10/8.1/8/7/Server 2016/Server 2012/Server 2008R2, Linux Debian 6.0+ / Ubuntu 11.04+/ Fedora 15+; Open SUSE 11.4+, Mac OS X; Android™ 4.x-7.x**
• Driver : CCID native driver from operating system (Windows/Linux/Mac)
• Supported APIs : PC/SC - API
• Status Indicator : White LED
• Housing : OMNIKEY Professional Line Desktop Design, Poly Carbonate, Cover grey / Body light grey, Customer-specific logo or colour on request, Protection Rating: IP54 (dust/splashing water)
• Dimensions : 2.79” x 3.66” x 0.63” (71 mm x 93 mm x 16 mm)
• Weight : ~100 g (3.53 oz)
• Operating Temperature : 32-131 F (0-55°C)
• Operating Humidity : 10-95% rH (not condensing)
• Storage Temperature : -4 - 176 F (-20 - 80°C)
• Durability : 100.000 insertions
• Meantime Between Failure (MTBF) : 500.000 hours
